Analog Devices ADL5601ARKZ RF/IF Gain Block

The ADL5601ARKZ from Analog Devices Inc. is a high-performance RF/IF gain block that is designed to provide consistent gain and robust performance across a wide range of frequencies and applications. This gain block amplifier is an essential component for designers looking to enhance signal strength in communication systems, test equipment, and general-purpose RF applications.

Key Features:


• Frequency Range: The ADL5601ARKZ operates over a broad frequency range from 1800 MHz to 2700 MHz, making it suitable for a variety of wireless applications including LTE, GSM, WCDMA, and more.

• Gain: It offers a fixed gain of 15 dB which allows for significant signal amplification without the need for external components or complex circuitry.

• Output Power: With an output third-order intercept point (OIP3) of +32 dBm, this device delivers a high level of linearity, which is crucial for maintaining signal integrity in complex RF systems.

• Low Noise Figure: The low noise figure of 3.3 dB ensures minimal added noise, preserving the quality of the original signal.

• Single Supply Voltage: The gain block operates on a single 5V supply voltage, simplifying power supply design.

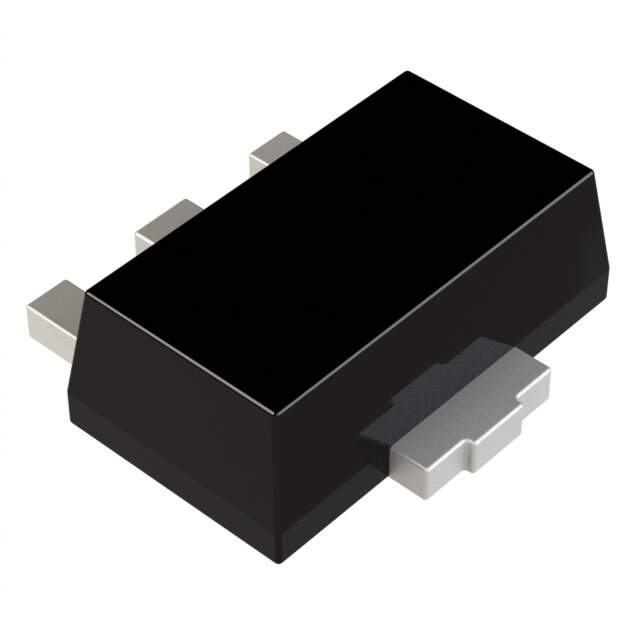

• Package: ADL5601ARKZ is offered in a compact, 6-lead SOT-89 package, making it easy to integrate into space-constrained designs.

Applications:

The ADL5601ARKZ is versatile and can be used in a range of applications, including:


• Wireless infrastructure (e.g., base station transceivers, repeaters)

• Cable modems and set-top boxes

• RF/IF gain stages in communication systems

• General-purpose RF amplification

Analog Devices Inc. is known for its high-quality components, and the ADL5601ARKZ is no exception. It delivers reliable performance and is an excellent choice for designers seeking a robust, easy-to-use RF/IF gain block. Whether for professional or hobbyist RF circuit designs, the ADL5601ARKZ offers the precision and durability expected from a leading semiconductor manufacturer.
