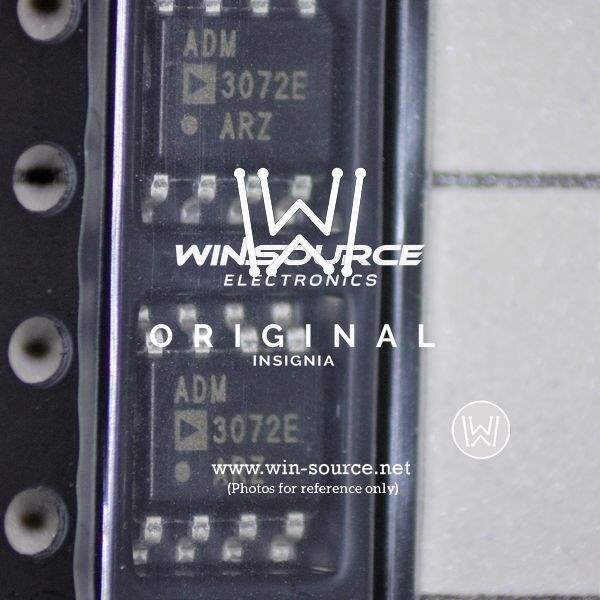

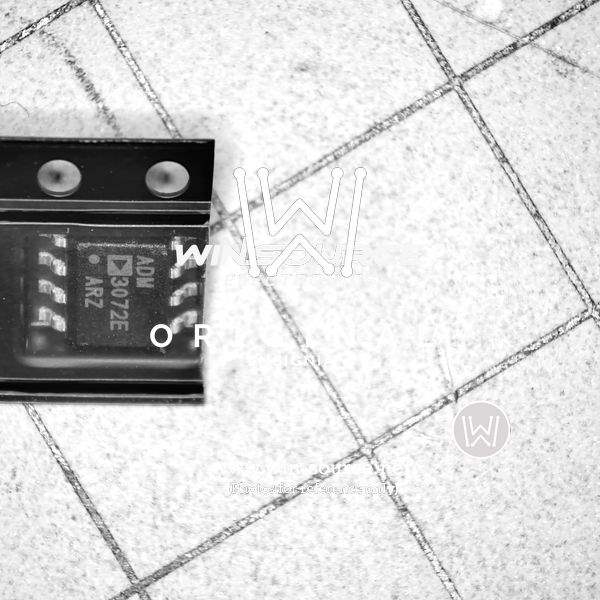

ADM3072EARZ-REEL7 – RS-485/RS-422 Transceiver by Analog Devices Inc.

The ADM3072EARZ-REEL7 is a robust, high-speed transceiver module from Analog Devices Inc., designed to operate as part of a bidirectional bus communications system in compliance with the RS-485 and RS-422 standards. Packaged in a compact 8-lead SOIC form factor, this transceiver is suitable for balanced data transmission and is engineered to withstand the harsh conditions found in industrial environments.

With an operating voltage range of 3.3V to 5.5V, the ADM3072EARZ-REEL7 ensures compatibility with a variety of logic families. This versatility is further enhanced by its 250 kbps to 16 Mbps data rate capability, making it ideal for applications that require high-speed data transfer, such as factory automation, HVAC control systems, and networked industrial sensors.

The device incorporates Analog Devices' iCoupler® technology, which enables it to deliver high insulation and robustness against transient events. It features an extended common-mode range of −7 V to +12 V, which exceeds the industry standard of −7 V to +7 V, offering improved signal integrity and noise immunity. This is particularly important in electrically noisy environments where signal quality can be compromised.

Key features of the ADM3072EARZ-REEL7 include true fail-safe receiver inputs, which ensure a logic high receiver output when the inputs are open, shorted, or idle, thereby preventing false data transmission. It also comes with thermal shutdown and current-limiting circuitry, which provides protection against fault conditions. The device is fully specified over the industrial temperature range of −40°C to +85°C, ensuring reliable operation in extreme temperatures.

Offered in a tape and reel package, the ADM3072EARZ-REEL7 is suitable for automated manufacturing processes, allowing for efficient assembly in high-volume production environments. Its ESD protection level of ±15 kV on the bus pins provides additional robustness, safeguarding the transceiver from electrostatic discharge during handling and operation.

With its combination of high-speed data transfer, robust protection features, and compatibility with multiple logic levels, the ADM3072EARZ-REEL7 from Analog Devices Inc. is an excellent choice for designers looking to implement reliable RS-485/RS-422 communication interfaces in their industrial and commercial applications.
