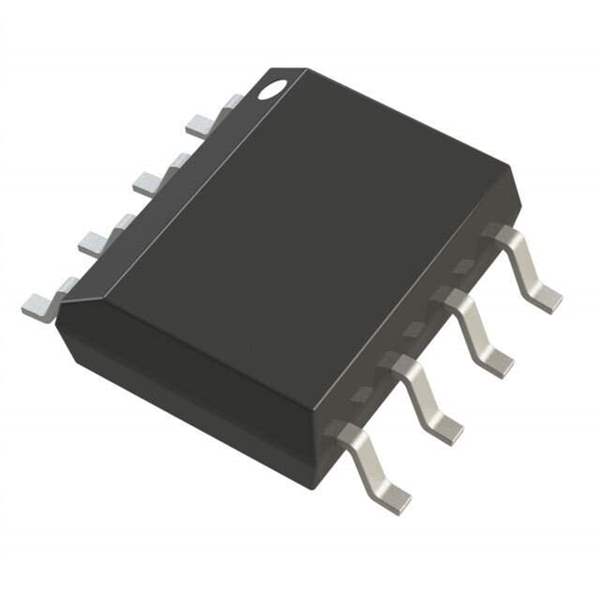

Analog Devices Inc. ADM708SAR Supervisor IC

The ADM708SAR from Analog Devices Inc. is a highly reliable voltage monitoring and power supply supervision integrated circuit designed to ensure the stability and functionality of microprocessor systems. This supervisor IC is essential for systems that require precision and robust protection against power supply faults, ensuring that microprocessors and other sensitive components operate within safe voltage thresholds.

The ADM708SAR features a variety of functions, including power-on reset control, watchdog timer, and manual reset input. These features are crucial for maintaining system integrity and preventing data corruption during power-up, power-down, and brown-out conditions. The device ensures that the microprocessor and other system components are reset to a known state upon power-up and maintains proper operation through voltage fluctuations.

One of the key specifications of this supervisor IC is its monitoring threshold voltage, which is meticulously designed to detect out-of-tolerance power supply conditions. The ADM708SAR provides a precise reset signal to the microprocessor during power-up, power-down, and brown-out conditions, which is critical for avoiding system errors and data loss.

The watchdog timer is an additional safety feature that monitors the microprocessor activity. If the microprocessor fails to provide a periodic signal to the watchdog timer, indicating that the system is running as expected, the ADM708SAR will assert a system reset. This automatic reset helps in recovering from a software lock-up or other faults that might cause the system to become unresponsive.

For manual intervention, the ADM708SAR offers a manual reset input that allows the user to trigger a system reset with an external push-button or switch, providing an additional layer of control for system maintenance or emergency recovery procedures.

With its compact SOIC-8 packaging, the ADM708SAR is designed for space-constrained applications, providing a minimal footprint while delivering maximum functionality. Its low power consumption and wide operating temperature range make it suitable for various applications, including portable devices, automotive systems, and industrial controls.

In summary, the ADM708SAR from Analog Devices Inc. is a versatile and essential component for any microprocessor-based system, delivering reliable monitoring and control to safeguard against power supply anomalies and system malfunctions.
