Analog Devices Inc. ADP1650ACBZ Product Overview

The ADP1650ACBZ is a high-performance, high-efficiency, white LED driver from Analog Devices Inc., designed to enhance the visual experience in portable devices by providing a superior lighting solution. This compact, integrated circuit is specifically tailored for driving high-brightness LEDs in camera flash applications, making it an ideal component for smartphones, digital cameras, and other portable electronic devices where space is at a premium and efficient power management is crucial.

Key Features

• Input Voltage Range: The device operates from a 2.5 V to 5.5 V input voltage range, accommodating a variety of power sources, including single-cell lithium-ion batteries.
• Adjustable Output Voltage: It can provide an adjustable output voltage up to 20 V, which is essential for driving multiple LEDs in series, ensuring consistent brightness and performance.
• High Efficiency: The ADP1650ACBZ boasts a high efficiency of up to 90%, reducing power consumption and heat generation, thereby extending battery life in portable applications.
• Strobe and Torch Modes: It features dual-mode operation with both strobe (flash) and torch (continuous) modes, making it versatile for different lighting scenarios.

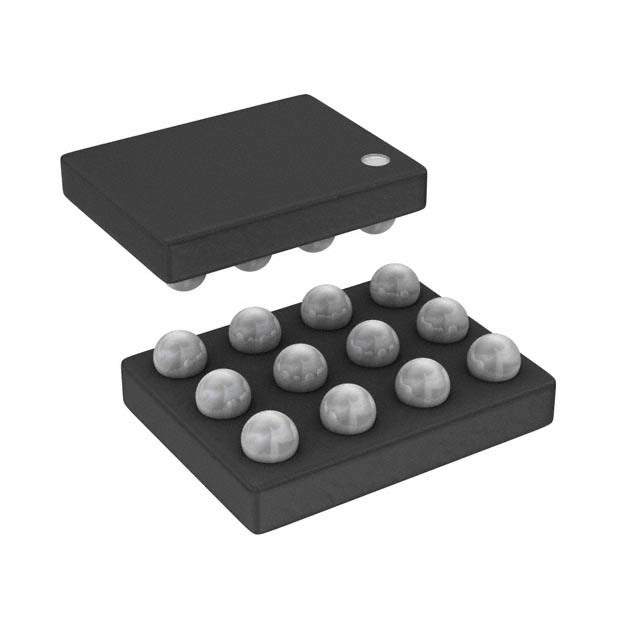

• Small Footprint: Packaged in a compact 12-ball WLCSP (Wafer Level Chip Scale Package), the device minimizes the space required on the PCB, freeing up room for additional features or a more compact overall design.
• Integrated Safety Features: The ADP1650ACBZ includes safety features such as overvoltage protection, thermal shutdown, and LED short-circuit protection, ensuring reliable operation and longevity of the device and the LEDs it drives.
• I2C-Compatible Interface: An I2C-compatible interface allows for programmable settings, enabling precise control over LED current levels and functionality, which can be tailored to the specific needs of the application.

Applications

The versatility of the ADP1650ACBZ makes it suitable for a wide range of applications beyond camera flash, including video lighting, general LED backlighting, and any portable device requiring high-brightness LED illumination. Its high performance and feature set ensure that designers can meet the demanding requirements of modern portable electronics with ease.

With the ADP1650ACBZ, Analog Devices Inc. delivers a robust and efficient solution for advanced LED driving applications, underscoring their commitment to innovation and quality in power management technology.
