ADP1706ACPZ-1.2-R7 - Linear Voltage Regulator by Analog Devices Inc.

The ADP1706ACPZ-1.2-R7 is a high-performance linear voltage regulator designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This regulator is part of the ADP1706 series, known for its reliability and efficiency in providing stable voltage outputs for a variety of applications.

Key Features:

• Output Voltage: The ADP1706ACPZ-1.2-R7 provides a fixed output voltage of 1.2V, which is ideal for low-voltage applications that require precise voltage regulation.
• High Accuracy: This device offers excellent load and line regulation, ensuring a consistent output even under varying input conditions and load demands.
• Low Dropout: With a low dropout voltage, the ADP1706ACPZ-1.2-R7 can operate effectively even when the input voltage is very close to the output voltage, making it suitable for battery-operated devices.
• Output Current: Capable of delivering up to 1A of continuous output current, this regulator can power a range of devices from simple sensors to more demanding processors.
• Thermal Protection: It includes built-in thermal overload protection that safeguards the device against excessive temperature and potential damage.

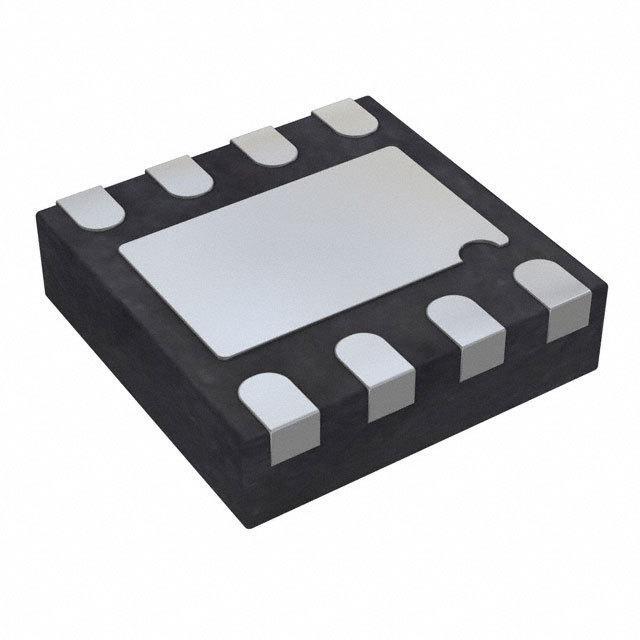

• Package: The regulator comes in a compact LFCSP (Lead Frame Chip Scale Package) that is both space-saving and offers excellent thermal performance.

Applications:

The ADP1706ACPZ-1.2-R7 is versatile and can be used in a wide array of applications, including:

• Portable and battery-powered devices
• Microprocessor/ASIC/DSP/FPGA supplies
• Data storage systems
• Medical devices
• Networking and telecom equipment

Summary:

The ADP1706ACPZ-1.2-R7 from Analog Devices Inc. is a robust linear voltage regulator that offers a fixed 1.2V output, high accuracy, and low dropout performance. With the ability to deliver 1A of output current and integrated thermal protection, this regulator is an excellent choice for designers looking to maintain voltage stability in their electronic systems. Its compact package allows for efficient use of board space, making it a preferred choice for space-constrained applications.
