Analog Devices ADP1713AUJZ-1.0-R7 Low Dropout Linear Regulator

The ADP1713AUJZ-1.0-R7 is a high-performance, low dropout linear regulator (LDO) from Analog Devices Inc., designed to provide a fixed output voltage of 1.0V with superior accuracy. This compact and efficient LDO is ideal for a wide range of applications, including portable and battery-powered devices, where power efficiency and space constraints are critical considerations.

With an input voltage range of 2.5V to 5.5V, the ADP1713AUJZ-1.0-R7 is versatile and can accommodate a variety of power sources. It is capable of delivering up to 300mA of continuous output current, which makes it suitable for powering small to medium-sized loads. The low dropout voltage of the device ensures that it remains operational even when the input voltage is very close to the output voltage, thus maximizing battery life in portable applications.

One of the key features of the ADP1713AUJZ-1.0-R7 is its low quiescent current, which significantly reduces power consumption when the device is in idle mode. This is particularly important for extending the battery life of portable devices. Additionally, the LDO is equipped with several safety features, including over-current protection and thermal overload protection, to ensure reliable operation under various conditions.

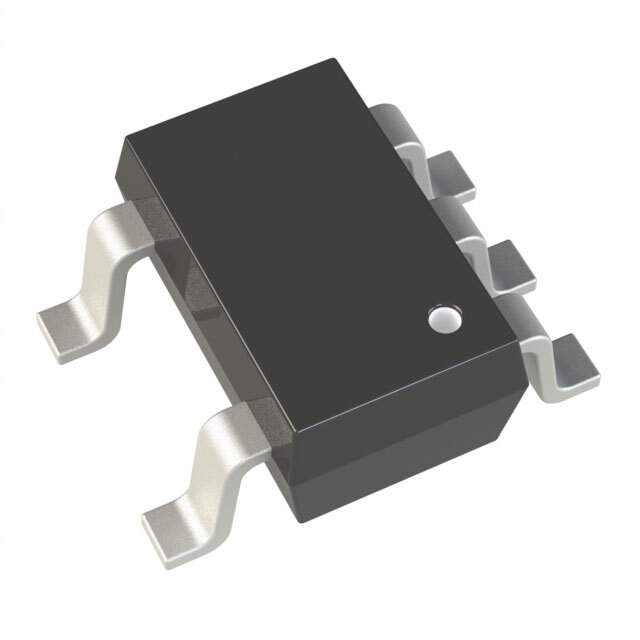

The ADP1713AUJZ-1.0-R7 comes in a compact TSOT-5 package, which is highly space-efficient and suitable for high-density circuit designs. The small footprint of the package allows designers to minimize the size of their power management solutions without compromising on performance.

For ease of implementation, the ADP1713AUJZ-1.0-R7 requires minimal external components, which simplifies the design process and helps accelerate time-to-market for products incorporating this LDO. The fixed output voltage version eliminates the need for external resistors to set the voltage, further reducing component count and simplifying the circuit design.

In summary, the ADP1713AUJZ-1.0-R7 from Analog Devices Inc. is a reliable and efficient solution for applications requiring a stable and precise voltage supply. Its low dropout characteristics, high accuracy, and compact size make it an excellent choice for designers looking to optimize their power management solutions.
