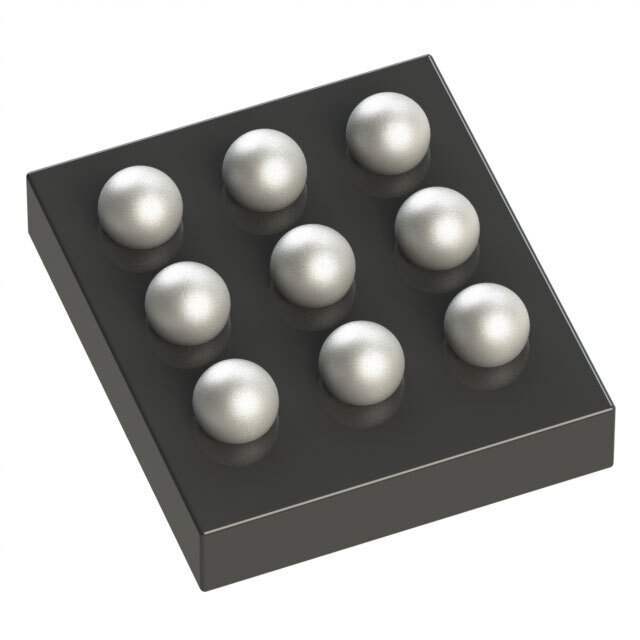

Analog Devices Inc. ADP5303ACBZ-2-R7 High-Efficiency, Low Quiescent Current Step-Down Converter

The ADP5303ACBZ-2-R7 is a high-performance, ultra-low-power step-down regulator from the reputable manufacturer Analog Devices Inc. This efficient power management IC is designed to meet the stringent energy requirements of battery-powered devices, making it an ideal choice for a wide range of portable and IoT applications.

With an input voltage range of 2.15V to 6.50V, the ADP5303ACBZ-2-R7 is versatile enough to operate from a variety of power sources, including single-cell Li-Ion batteries, and multiple Alkaline/NiMH cells, or regulated 5V power supplies. Its ability to deliver up to 500 mA of output current makes it suitable for powering small to medium-sized loads.

This regulator boasts an impressive quiescent current of just 180 nA, which significantly extends battery life in applications where maintaining a low standby power is critical. The ADP5303ACBZ-2-R7 also features a Power Save Mode, which enhances efficiency at light loads, and a fixed frequency PWM mode that ensures stable operation under heavier loads.

For design flexibility, the ADP5303ACBZ-2-R7 offers an adjustable output voltage from 0.8V to 5V, allowing designers to tailor the voltage to their specific circuit requirements. The device is also equipped with several protective features, including over-current protection, thermal overload protection, and under-voltage lockout, ensuring reliable operation under adverse conditions.

Encased in a compact, 6-lead WLCSP package, the ADP5303ACBZ-2-R7 minimizes the footprint on the PCB and is an excellent choice for space-constrained applications. Its high switching frequency of up to 1 MHz allows the use of small, low-cost inductors and capacitors, further reducing the overall solution size and BOM cost.

Whether you're developing wearables, wireless sensors, or any other application that demands high efficiency and low quiescent current, the ADP5303ACBZ-2-R7 from Analog Devices Inc. offers a robust and reliable solution that can help optimize performance and extend battery life.

For detailed specifications and application guidance, designers are encouraged to consult the comprehensive datasheets and technical documentation available from Analog Devices Inc.
