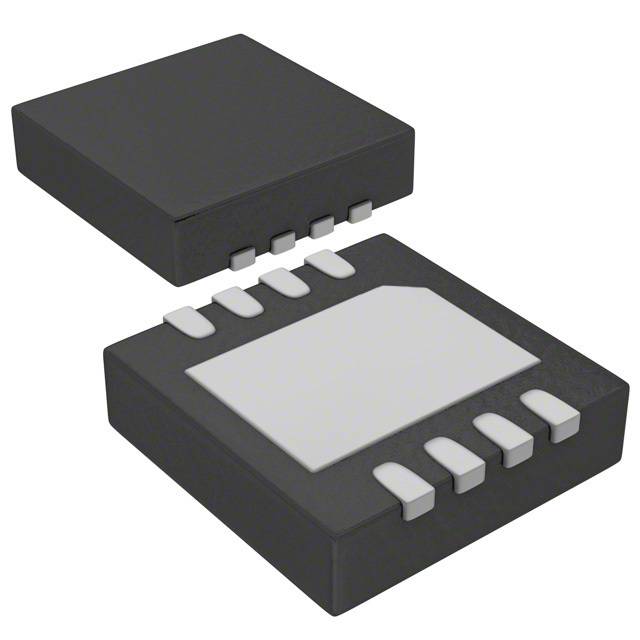

ADP7102ACPZ-5.0-R7

Part No ADP7102ACPZ-5.0-R7
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description 20 V, 300 mA, Low Noise, CMOS LDO
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage Input MAX 20V
Output Voltage 5V
Voltage Dropout (Maximum) 0.325V @ 300mA
Output Current 300mA
Operating Supply Current 900μA ~ 1.4mA
PSRR 60dB ~ 50dB (10kHz ~ 100kHz)
Control Features Enable, Power Good, Under Voltage Lockout
Protection Features Over Current, Over Temperature, Reverse Polarity
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 8-WFDFN Exposed Pad, CSP
Manufacturer Package 8-LFCSP-WD (3x3)
Win Source Part Number 1141384-ADP7102ACPZ-5.0-R7
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name ADP7102
Introduction Date October 19, 2011
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADP7102ACPZ-5.0-R7 CAD Model

Description

ADP7102ACPZ-5.0-R7: High-Performance CMOS Linear Regulator

The ADP7102ACPZ-5.0-R7 from Analog Devices Inc. is a state-of-the-art CMOS linear regulator that offers excellent noise performance and power supply rejection ratio (PSRR) characteristics. Designed to provide a fixed 5.0V output with up to 300 mA of output current, this regulator is ideal for precision analog applications where a stable and clean voltage supply is critical.

Encased in a compact LFCSP (Lead Frame Chip Scale Package), the ADP7102ACPZ-5.0-R7 is suitable for space-constrained applications. Its small footprint does not compromise its performance, as it boasts a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage. This feature makes the ADP7102ACPZ-5.0-R7 a great choice for battery-operated devices where maximizing battery life is essential.

One of the key attributes of this linear regulator is its low quiescent current, which contributes to minimal power consumption when in operation. This aspect, coupled with the no-load ground current, makes it an energy-efficient solution for portable electronics, medical devices, and industrial instrumentation. The device also features over-current protection and thermal overload protection, providing a reliable safeguard for both the regulator and the system it powers.

The ADP7102ACPZ-5.0-R7 operates over a wide input voltage range from 4.3V to 20V, giving designers the flexibility to use it in various applications. Additionally, it offers a fast transient response, ensuring stable performance during rapid changes in load, which is particularly important for high-speed analog circuits.

For applications that demand a low-noise power supply, the ADP7102ACPZ-5.0-R7 excels with its low 9 µVrms of output noise, making it an excellent choice for sensitive RF or audio applications where noise can significantly impact performance.

In summary, the ADP7102ACPZ-5.0-R7 by Analog Devices Inc. is a versatile, high-performance linear voltage regulator that combines energy efficiency, robust protection features, and low-noise operation, making it an ideal power management solution for a wide range of electronic applications.
