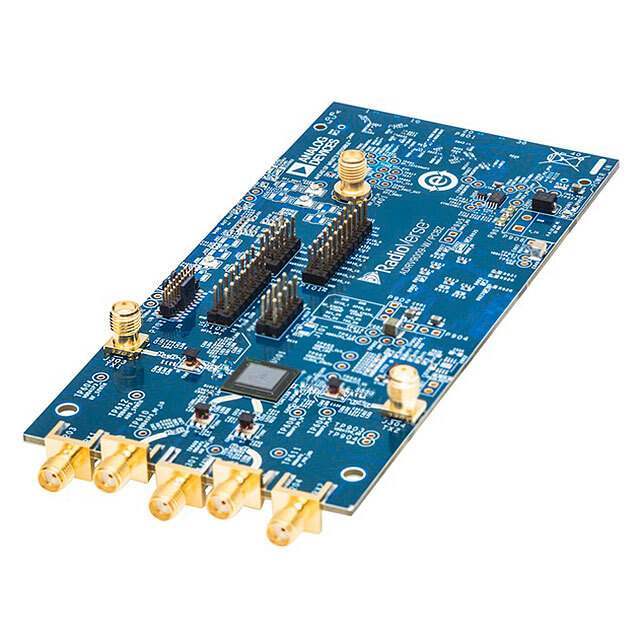

ADRV9009-W/PCBZ Wideband RF Transceiver Evaluation Board

The ADRV9009-W/PCBZ from Analog Devices Inc. is a high-performance, wideband RF transceiver evaluation board designed to showcase the capabilities of the ADRV9009, one of the industry's most versatile radio frequency integrated circuits (RFICs). The ADRV9009 is renowned for its wide frequency range, high bandwidth, and integration, making it an ideal solution for a variety of applications such as wireless infrastructure, test and measurement, and defense electronics.

This evaluation board is specifically engineered to aid in the development and testing of next-generation RF solutions. It offers a comprehensive platform for both hardware and software developers to explore the features of the ADRV9009 transceiver in a real-world scenario. The board provides access to all the RF ports and a wide range of digital interfaces for a complete evaluation experience.

Key Features of the ADRV9009-W/PCBZ:

• Wideband Transceiver: The ADRV9009 operates over a wide frequency range, supporting both TDD and FDD operations. This makes it highly adaptable to multiple RF applications.
• Dual-Channel: It features dual transmitters and receivers, with integrated synthesizers and digital signal processing functions, which can significantly reduce the bill of materials for system design.
• High Performance: With its high dynamic range and excellent signal fidelity, the ADRV9009 is designed to meet the stringent requirements of modern wireless infrastructure.
• Programmable: The device includes customizable filters and a range of configuration options, providing developers with the flexibility to tailor the transceiver to specific needs.
• Software Support: Analog Devices offers comprehensive software support for the ADRV9009, including drivers and evaluation software that simplifies the process of bringing up the board and testing different configurations.

With the ADRV9009-W/PCBZ, engineers and designers have the opportunity to rapidly prototype and test their RF designs, reducing time-to-market for their products. The board's robust design and extensive documentation ensure a smooth development process from initial concept to final product. Whether for commercial telecommunications, aerospace, or defense applications, the ADRV9009-W/PCBZ evaluation board is an excellent starting point for developing cutting-edge RF solutions.
