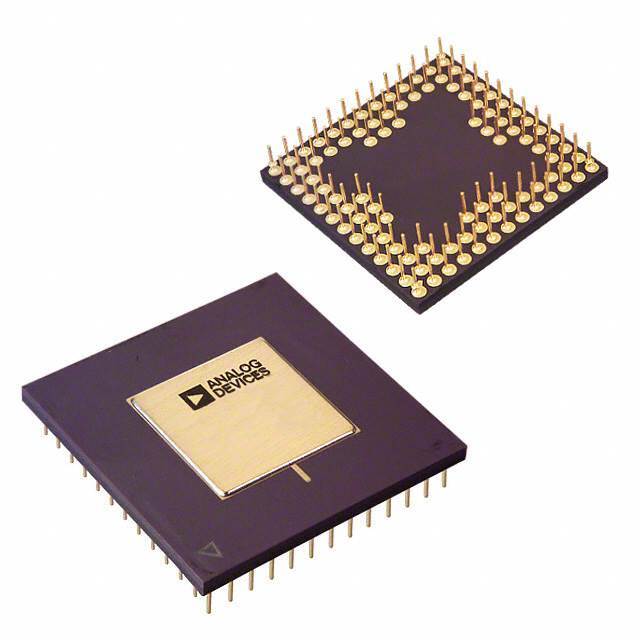

The ADSP-2111BG-80 is a high-performance, single-chip microcomputer optimized for digital signal processing (DSP) and other high-speed numeric processing applications. Manufactured by Analog Devices Inc., this DSP integrates a 16-bit fixed-point DSP core with on-chip memory and a variety of peripherals. It is designed to deliver exceptional performance for a wide range of audio, video, telecommunications, and industrial control systems.

Key Features:

• High-Performance DSP: With a 40 MHz internal clock speed, the ADSP-2111BG-80 offers 80 MIPS (Million Instructions Per Second) of processing power, making it suitable for demanding signal processing tasks.
• On-Chip Memory: It includes 2K x 24 bits of on-chip RAM and 2K x 24 bits of dual-port RAM, allowing for efficient data storage and retrieval without the need for additional external memory components.
• Peripheral Support: The device features a variety of peripherals such as serial ports, parallel ports, and timer/counters, providing flexibility in system design and the ability to interface with other components easily.
• Flexible Architecture: The ADSP-2111BG-80 supports a variety of instruction sets and addressing modes, enabling complex algorithms and control functions to be executed efficiently.
• Power Management: It provides low-power operation modes, making it ideal for portable and power-sensitive applications.

Applications:

The ADSP-2111BG-80 is well-suited for applications that require high-speed numeric processing such as:

• Digital audio and video processing
• Telecommunications infrastructure
• Speech and audio signal processing
• Instrumentation and control systems
• Automotive electronics

Technical Specifications:

Overall, the ADSP-2111BG-80 by Analog Devices Inc. is a robust and versatile DSP that offers a balance of performance, power efficiency, and integration, making it an excellent choice for a variety of high-performance applications.
