The ADSP-BF547BBCZ is a high-performance digital signal processor (DSP) from Analog Devices Inc., designed to cater to a wide range of applications requiring efficient signal processing capabilities. This DSP is part of the Blackfin family of products, which are known for their combination of a microcontroller architecture with a DSP instruction set, making them ideal for embedded systems that require both control and signal processing functionalities.

Key Features:

• High-Performance Signal Processing: With its core clock speed reaching up to several hundred MHz, the ADSP-BF547BBCZ can perform complex signal processing tasks quickly and efficiently, making it suitable for real-time applications.
• Integrated Peripherals: The device includes a range of on-chip peripherals such as UART, SPI, CAN, and USB interfaces, which simplify system design and reduce the need for external components.
• Large On-Chip Memory: The processor is equipped with large on-chip SRAM, which allows for high-speed data access and reduces the need for external memory components.
• Low Power Consumption: Designed with power efficiency in mind, the ADSP-BF547BBCZ is suitable for battery-powered and portable devices, where power consumption is a critical factor.
• Flexible Connectivity: The DSP supports a variety of connectivity options, enabling it to interface with a wide range of external devices and systems.

Applications:

The versatility of the ADSP-BF547BBCZ makes it an excellent choice for a multitude of applications, including but not limited to:

• Industrial Control Systems
• Audio and Video Processing
• Automotive Electronics
• Medical Imaging Devices
• Communication Infrastructure

Technical Specifications:

The ADSP-BF547BBCZ features a 16/32-bit RISC-like architecture, which allows for both high-speed mathematical operations and efficient control processing. It supports a wide range of external memory options and has a flexible booting mechanism that can accommodate different storage devices. The processor also includes a Memory Management Unit (MMU) supporting operating systems that require memory protection and virtual memory capabilities.

Ordering and Packaging:

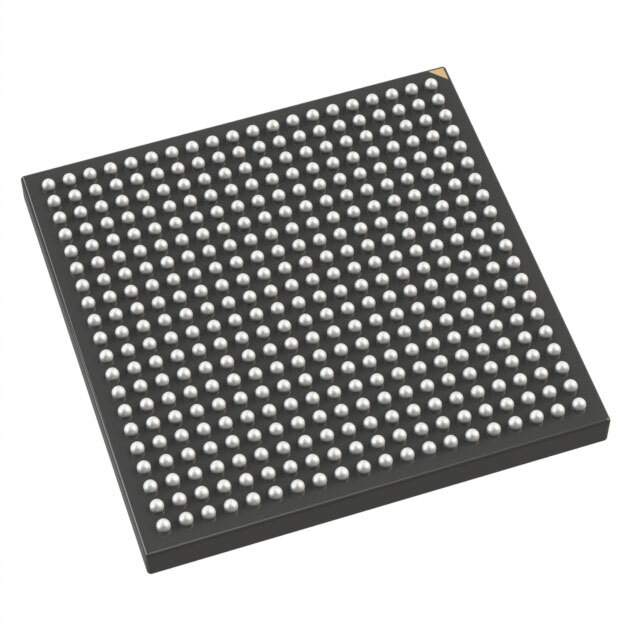

The ADSP-BF547BBCZ is available in a BGA (Ball Grid Array) package, ensuring robust physical connectivity and ease of PCB design. When ordering, be sure to specify any necessary temperature grades or packaging options suitable for your specific application needs.
