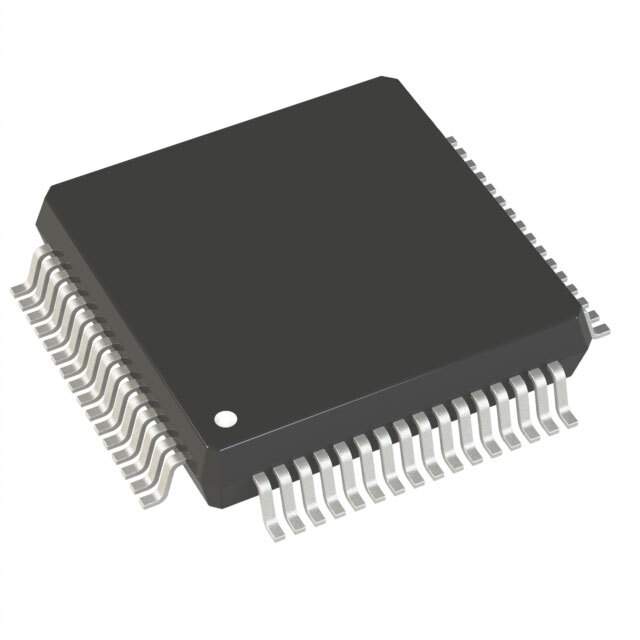

Analog Devices Inc. ADUC7024BSTZ62 Microcontroller

The ADUC7024BSTZ62 is a highly integrated microcontroller from Analog Devices Inc., designed for precision analog microcontroller applications that require a high degree of accuracy and performance. This product combines a 32-bit ARM7TDMI MCU core with a range of analog peripherals, making it an ideal solution for industrial control systems, smart sensors, instrumentation, and medical applications.

At the heart of the ADUC7024BSTZ62 is the ARM7TDMI core, which operates at a frequency of up to 41.78 MHz. This provides the computational power necessary for complex algorithms and control tasks. The microcontroller also features 62 kB of non-volatile Flash/EE memory, ensuring ample space for application code and data storage, as well as 4 kB of SRAM, which provides the speed and accessibility needed for efficient real-time operations.

The analog capabilities of the ADUC7024BSTZ62 are a standout feature. It includes a 12-bit multi-channel ADC (Analog-to-Digital Converter) with up to 1 MSPS (Mega-Sample Per Second), enabling fast and accurate data acquisition. Additionally, the device features a 12-bit DAC (Digital-to-Analog Converter), on-chip voltage reference, and a temperature sensor, all of which contribute to its precision measurement capabilities.

For connectivity, the ADUC7024BSTZ62 supports a variety of interfaces, including I2C, SPI, UART, and GPIOs, allowing for flexible communication with other devices and peripherals. The microcontroller also includes a PLL (Phase-Locked Loop) and Oscillator, watchdog timer, and power supply monitor, which help maintain reliable operation and system stability.

The packaging for the ADUC7024BSTZ62 is a LQFP (Low Profile Quad Flat Package) with 64 leads, ensuring a compact footprint suitable for space-constrained applications. The device is specified for operation over the industrial temperature range of -40°C to +125°C, making it robust enough to handle challenging environmental conditions.

Analog Devices Inc. is known for its high-quality products, and the ADUC7024BSTZ62 is no exception. It offers designers a powerful combination of ARM processing power and precision analog peripherals, making it a versatile choice for a wide range of advanced applications.
