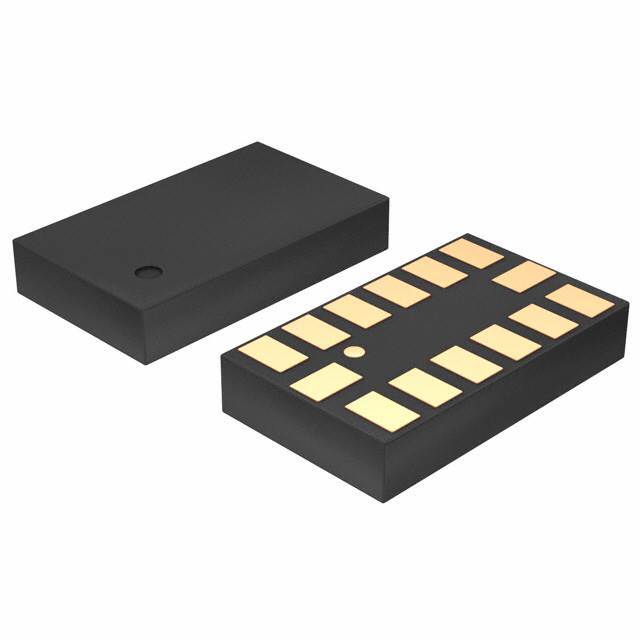

ADXL345BCCZ-RL7

Part No ADXL345BCCZ-RL7
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - Accelerometers
Description ACCEL 2-16G I2C/SPI 14LGA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 256 (±2g) to 32 (±16g)
Bandwidth 0.05Hz to 1.6kHz
Output Type I2C, SPI
Supply Voltage - Operating 2 V to 3.6 V
Features Adjustable Bandwidth
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 14-LGA (3x5)
Win Source Part Number 009568-ADXL345BCCZ-RL7
Family Name ADXL345-EP
Introduction Date November 01, 2008
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ADXL345BCCZ-RL7 CAD Model

Description

ADXL345BCCZ-RL7 from Analog Devices Inc. is a motion sensor accelerometer widely considered for embedded motion-aware designs that need reliable movement detection in compact electronic systems. Engineers commonly evaluate devices in this category for portable electronics, industrial monitoring, gaming and input devices, asset tracking, wearable products, and orientation or tilt-sensitive controls. Its value lies in helping designers add motion intelligence to products where low-power operation, small footprint, and stable signal processing are important selection factors. For procurement teams and design engineers, this part is best positioned as a mainstream accelerometer option from a well-known analog and mixed-signal supplier. The current lifecycle status for ADXL345BCCZ-RL7 is information not available, so long-term program teams should confirm factory status before committing to new designs or volume buys. RoHS compliance information is also not available in the provided data and should be verified directly through the latest manufacturer datasheet, compliance certificate, or authorized distribution channel.
