The AD5679RBCPZ-1, from Analog Devices Inc., is a high-performance, 16-bit digital-to-analog converter (DAC) that offers exceptional accuracy and stability. It is part of a family of DACs that provide a range of resolutions and channel counts, making them suitable for a wide variety of applications, including industrial automation, process control, and precision instrumentation.

Key Features

• Resolution: 16-bit resolution provides fine-grain output control, enabling precise adjustments to analog signals.
• Output Range: Configurable output ranges, including 0 V to 5 V, 0 V to 10 V, ±5 V, and ±10 V, provide flexibility for diverse use cases.
• Channels: The device includes multiple channels, allowing for simultaneous control of several analog signals.
• Interface: I2C-compatible serial interface ensures easy integration with most microcontrollers and digital systems.
• Integrated EEPROM: On-chip EEPROM allows for the storage of user-defined settings, which can be automatically loaded at power-up, simplifying device configuration.
• Accuracy: Excellent integral nonlinearity (INL) and differential nonlinearity (DNL) specifications ensure precise and consistent performance.
• Power Supply: Operates from a single 2.7 V to 5.5 V supply, making it compatible with a wide range of power sources.

Applications

The AD5679RBCPZ-1 is well-suited for a variety of applications, including:

• Automated test equipment
• Data acquisition systems
• Industrial control systems
• Digital gain and offset adjustment
• Programmable voltage and current sources

Package and Quality

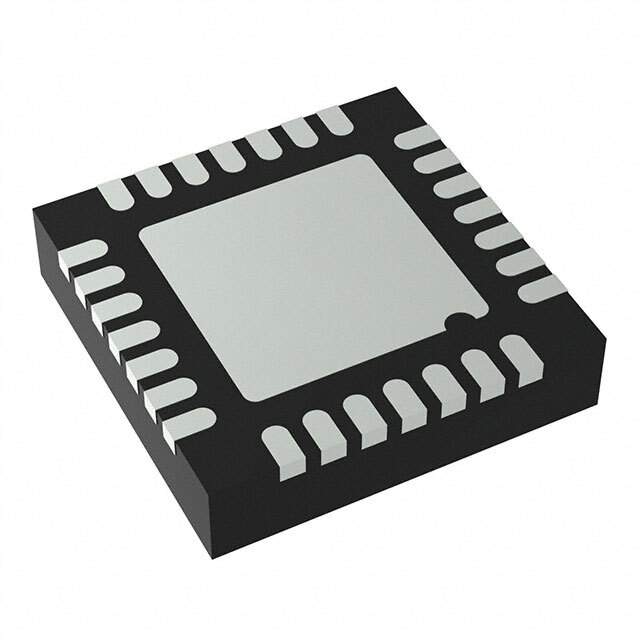

This DAC is available in a compact, lead-frame chip-scale package (LFCSP), which minimizes the footprint on the printed circuit board and is ideal for space-constrained applications. The AD5679RBCPZ-1 is designed to meet the stringent quality requirements of industrial applications and is backed by Analog Devices Inc.'s commitment to high-quality and reliable products.

For detailed specifications, application notes, and support resources, visit the Analog Devices Inc. website to obtain comprehensive information about the AD5679RBCPZ-1 DAC.
