Product Overview: EV1HMC8411LP2F by Analog Devices Inc.

The EV1HMC8411LP2F is a high-performance, RF amplifier evaluation board from Analog Devices Inc., designed to showcase the capabilities of the HMC8411, a low noise, wideband, gallium arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) amplifier. This evaluation board is an excellent tool for engineers and designers looking to test and integrate the HMC8411 amplifier into their RF and microwave applications.

Key Features

• Frequency Range: The HMC8411 operates over a wide frequency range from 2 GHz to 28 GHz, making it suitable for a variety of applications including electronic warfare, radar, test equipment, and satellite communications.
• Low Noise Figure: With a low noise figure of 2.5 dB, the amplifier provides excellent signal integrity, which is crucial for high-performance systems where signal quality is paramount.
• High Gain: The device offers a high gain of 13 dB, ensuring signal amplification without significant loss of power.
• Output Power: It delivers +22 dBm of saturated output power, contributing to robust signal transmission capabilities.
• Single Supply Voltage: The amplifier operates on a single supply voltage of +5V, simplifying power supply design and integration.
• Compact Design: The HMC8411 is housed in a compact 2x2 mm surface-mount package, making it ideal for space-constrained applications.

Applications

The EV1HMC8411LP2F is targeted towards a wide range of high-frequency applications. Its broad frequency range and low noise characteristics make it particularly well-suited for:

• Electronic countermeasures
• Test instrumentation
• Telecommunication infrastructure
• Military and space systems
• Fiber optic applications

Design and Integration

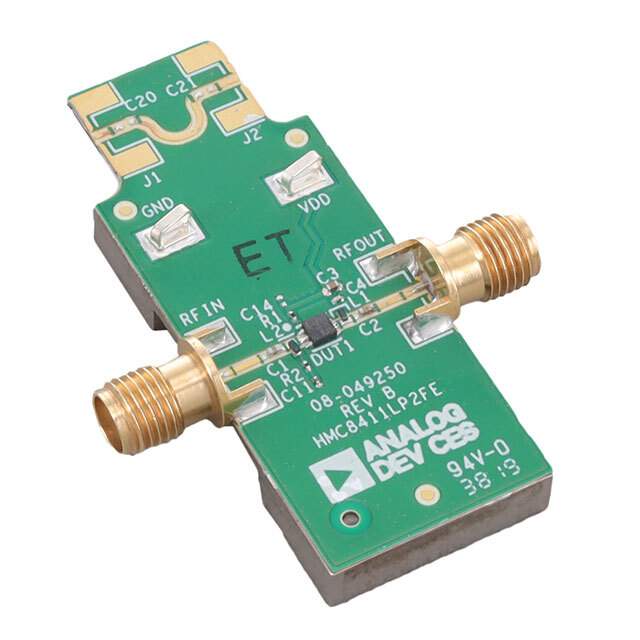

The evaluation board for the HMC8411 is designed to facilitate easy testing and integration. It includes all necessary matching networks, biasing circuits, and decoupling components, allowing for immediate use upon receipt. The board is also equipped with SMA connectors, providing convenient interfaces for quick connection to RF test setups.

With its exceptional performance and ease of use, the EV1HMC8411LP2F evaluation board from Analog Devices Inc. is an invaluable asset for engineers seeking to expedite development cycles and enhance the performance of their RF systems.
