The LT3032EDE-12#PBF is a high-quality dual linear voltage regulator produced by Analog Devices Inc., a leader in high-performance analog technology. This regulator is designed to supply up to 150mA of output current with a low dropout voltage and low noise, making it an excellent choice for precision electronics applications where power supply stability and cleanliness are critical.

Key Features:

• Dual Outputs: The LT3032 provides two outputs, one positive and one negative, both capable of delivering 150mA. This makes it ideal for split-supply applications.
• Low Noise: With low output noise of only 20μVRMS over a 10Hz to 100kHz bandwidth, this regulator ensures a clean power supply, which is crucial for sensitive analog circuits and precision instrumentation.
• Low Dropout Voltage: The device features a low dropout voltage, which enhances efficiency and allows operation with minimal input-to-output differential.
• Wide Input Voltage Range: It operates with an input voltage range from 2.6V to 16V, providing flexibility for various power supply configurations.
• Independent Shutdown for Each Channel: Each output can be independently shut down, allowing for greater control and power-saving opportunities.
• Thermal Protection: The LT3032EDE-12#PBF includes thermal shutdown protection to prevent damage from overheating.
• Stable with Low ESR Ceramic Capacitors: The regulator is stable with ceramic output capacitors, which are smaller, more reliable, and have lower equivalent series resistance (ESR) than other types of capacitors.

Applications:

With its precise voltage regulation and low noise characteristics, the LT3032EDE-12#PBF is suitable for a wide range of applications, including:

• Instrumentation
• Medical Equipment
• Industrial Supplies
• Portable Battery-Powered Devices
• Low Noise Systems

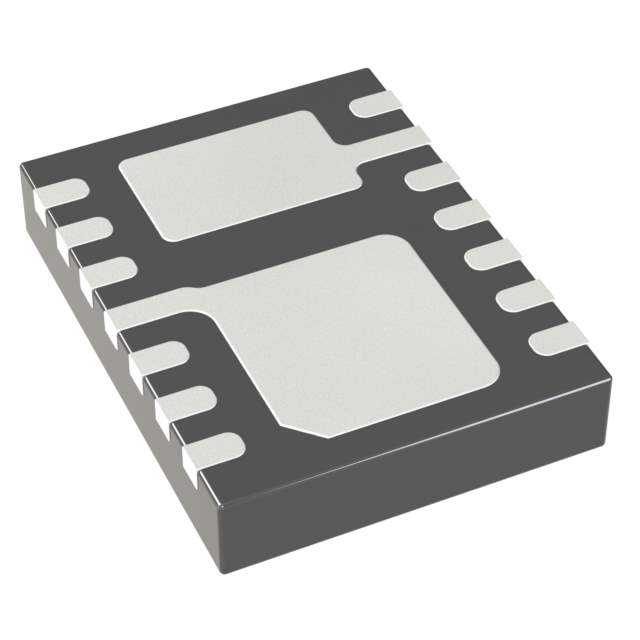

The LT3032EDE-12#PBF is available in a 14-lead DFN package, providing a compact solution for space-constrained applications. Its performance and versatility make it an excellent choice for designers looking to enhance the reliability and efficiency of their power management systems.
