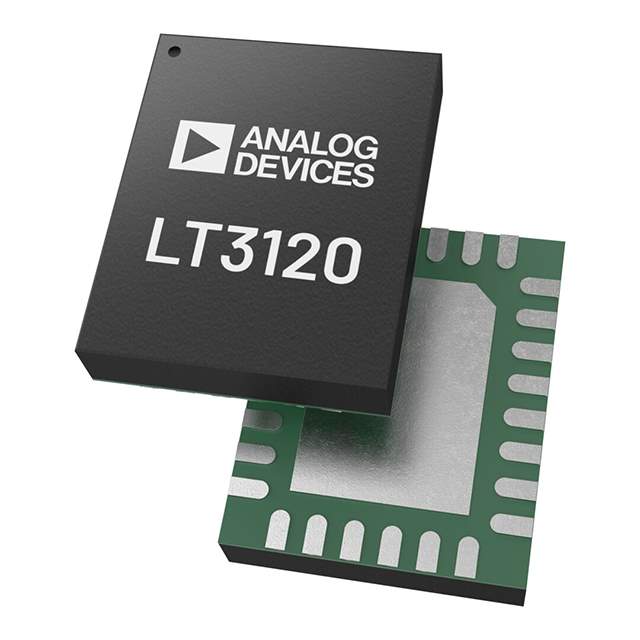

The LT3120JV#PBF is a high-performance, low-dropout linear regulator from Analog Devices Inc., a leading company in the design and manufacturing of high-performance integrated circuits. This regulator is designed to provide precision voltage control with a wide input range, making it an ideal choice for sensitive electronic applications requiring a stable power supply.

Key Features

• Adjustable Output Voltage: The LT3120JV#PBF offers an adjustable output voltage range, allowing designers to tailor the voltage to meet specific requirements of their application.
• Low Dropout Voltage: The device features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage, which is crucial for battery-powered applications.
• High Output Current: Capable of delivering up to 200mA of continuous output current, this regulator can power a wide range of devices.
• Stable with Low ESR Capacitors: It is designed to be stable with ceramic capacitors, which have lower equivalent series resistance (ESR) than other types, providing better performance and reliability.
• Thermal Protection: The LT3120JV#PBF includes thermal shutdown protection that safeguards the device and the application from damage due to excessive heat.
• Overcurrent Protection: Built-in overcurrent protection prevents damage to the regulator and the powered device in the event of a fault condition.

Applications

This versatile regulator is suitable for a broad range of applications, including but not limited to:

• Portable and battery-powered equipment
• Microprocessor supply
• Power supplies for cameras, PDAs, and mobile phones
• Reference voltage sources
• Post-regulation for switching supplies

Product Specifications

The LT3120JV#PBF from Analog Devices Inc. is a reliable and efficient solution for applications demanding a high-quality power supply. With its adjustable output voltage and robust protection features, it ensures performance and longevity for a multitude of electronic devices.
