Analog Devices Inc.'s LTM8050MPY: A Robust µModule Regulator

The LTM8050MPY by Analog Devices Inc. is a high-efficiency, step-down DC/DC µModule (micro module) regulator that combines a switching controller, power switches, inductor, and all support components in a compact, encapsulated package. Designed to offer a simple and efficient solution for power supply design, this product is particularly suitable for applications requiring a high level of reliability and performance within a small footprint.

The LTM8050MPY operates over an input voltage range of 6V to 36V and provides an adjustable output voltage from 0.97V to 24V, which can be set by a single resistor. With a 2.5A continuous output current capability (3.5A peak), this micro module regulator can handle a wide range of applications, from industrial controls to automotive systems. Its high efficiency is maintained over a broad range of output currents, thanks to its high-frequency operation and use of low-resistance MOSFET switches.

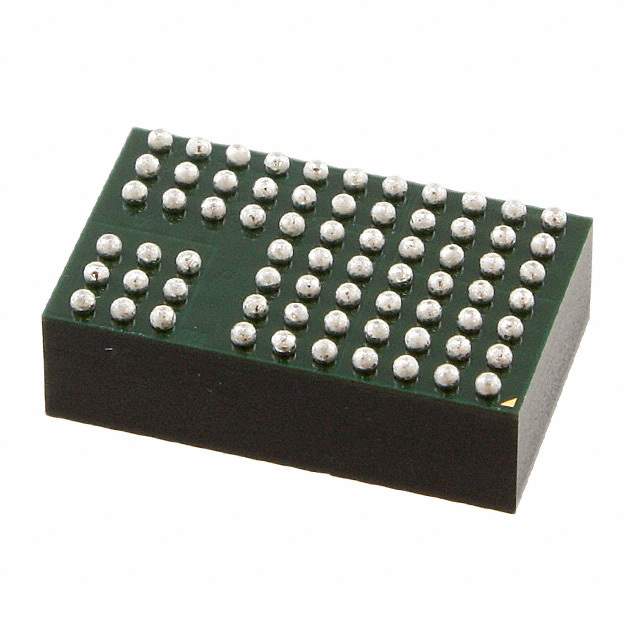

One of the key features of the LTM8050MPY is its rugged design. The device is offered in a thermally enhanced, over-molded BGA package that ensures excellent thermal performance and mechanical robustness. This makes it ideal for harsh environments where temperature extremes and vibration are common. The module is specified for operation from -55°C to +125°C, catering to military and automotive-grade requirements.

The LTM8050MPY also includes a range of integrated protection features to enhance system reliability. These include overvoltage, overcurrent, and over-temperature protection, ensuring that the device operates safely even under abnormal conditions. Additionally, the regulator supports frequency synchronization and output voltage tracking for applications that require multiple power rails to be closely coordinated.

For engineers looking to streamline their power supply designs, the LTM8050MPY offers a compact, reliable, and easy-to-use solution that minimizes design time and accelerates time-to-market. Its integration of multiple components into a single package reduces the need for external components, simplifies PCB layout, and increases system reliability, making it a smart choice for a wide array of demanding applications.
