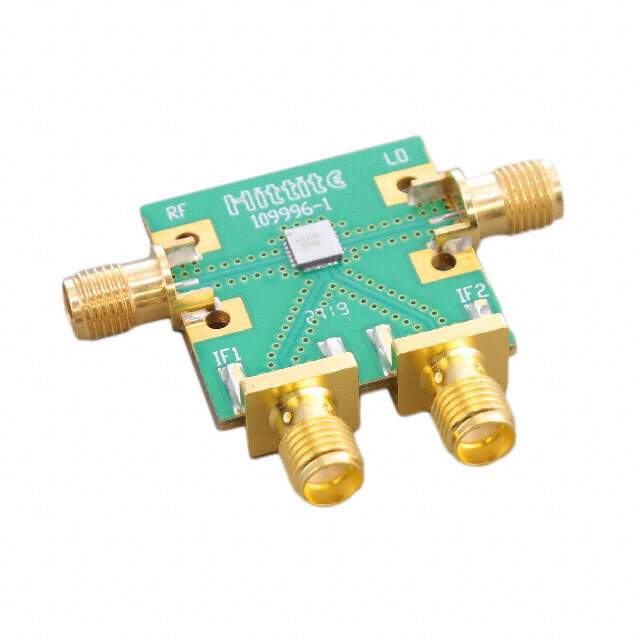

The EV1HMC521ALC4 from Analog Devices Inc. is a high-performance, easy-to-use evaluation board designed for the HMC521ALC4 MMIC PHEMT Mixer. This component is part of a series of mixers that provide excellent RF performance, making them suitable for a wide range of applications in the radio frequency (RF) and microwave domains.

Key Features

• High Integration: The HMC521ALC4 integrates a mixer core with LO amplifier and RF Balun on a single chip, facilitating a simplified design process and reducing the number of external components required.
• Broadband Performance: With a wide frequency range, this device can be used in various applications, including point-to-point radios, test equipment, and military end-uses.
• Exceptional Isolation: The mixer provides excellent isolation between ports, which is crucial for maintaining signal integrity and minimizing interference.
• High Linearity: Offering high IP3 performance, the HMC521ALC4 ensures that signals are mixed with minimal distortion, which is essential for maintaining signal quality in complex RF systems.

Applications

• Satellite Communications
• Fiber Optic
• Test and Measurement Equipment
• Military and Space
• Point-to-Point/Multipoint Radios

Product Specifications

The EV1HMC521ALC4 is designed to evaluate the functionality and performance of the HMC521ALC4 mixer. It operates over a broad frequency range with an RF/IF frequency range from 6 GHz to 26 GHz and an LO frequency range from 6 GHz to 16 GHz. The evaluation board comes with SMA connectors for easy connection to RF test equipment.

Easy to Use

With the EV1HMC521ALC4, testing and prototyping are made straightforward. The evaluation board is fully assembled and tested, allowing for immediate use out of the box. Detailed documentation and support from Analog Devices Inc. ensure that designers can quickly integrate the mixer into their systems with minimal setup time.

For engineers and designers looking for a reliable and high-performance mixer solution, the EV1HMC521ALC4 evaluation board from Analog Devices Inc. offers an excellent starting point for developing advanced RF and microwave systems.
