Product Overview: HMC554ALC3BTR by Analog Devices Inc.

The HMC554ALC3BTR is a high-performance, passive double-balanced mixer designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This device offers a unique combination of wide bandwidth, excellent isolation, and a compact form factor, making it an ideal choice for a variety of radio frequency (RF) and microwave applications.

Key Features

• Wide Frequency Range: The HMC554ALC3BTR operates over a broad frequency range, with the RF and LO frequency from 6 GHz to 14 GHz and the IF frequency from DC to 4 GHz. This wide range makes it suitable for diverse applications, including point-to-point radios, satellite communications, and military systems.
• High Isolation: The mixer provides excellent isolation between its ports. This characteristic minimizes signal leakage and ensures high-quality signal integrity, which is crucial for both transmit and receive signal chains.
• Low Conversion Loss: With its low conversion loss, the HMC554ALC3BTR ensures efficient signal conversion, which is vital for maintaining the overall system performance.

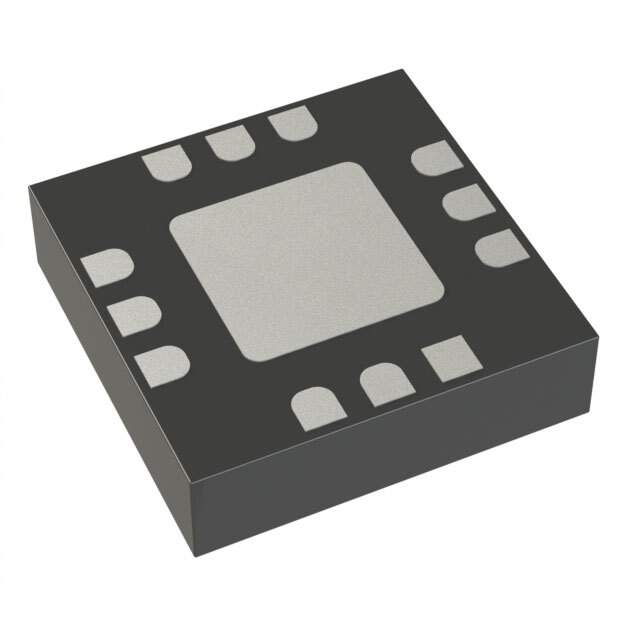

• Compact Surface-Mount Package: Housed in a RoHS-compliant 3x3 mm ceramic QFN package, the mixer is designed for easy integration into space-constrained applications.

Applications

The versatile nature of the HMC554ALC3BTR makes it suitable for a wide range of applications, including:

• Test Equipment and Sensors
• Point-to-Point and Point-to-Multipoint Radios
• Military and Space
• Satellite Communications Systems
• Wireless Infrastructure

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC554ALC3BTR is no exception. It is fabricated using a GaAs MESFET process, which provides consistent performance and durability. The device is also subjected to rigorous testing to ensure it meets the high standards expected from Analog Devices products.

In summary, the HMC554ALC3BTR from Analog Devices Inc. is a versatile and efficient mixer that provides excellent performance across a wide range of frequencies. Its high isolation, low conversion loss, and compact packaging make it an excellent choice for engineers looking to enhance their RF and microwave systems.
