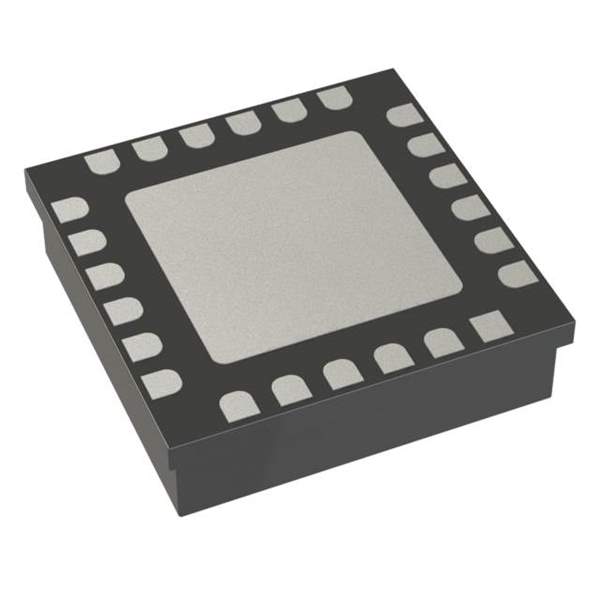

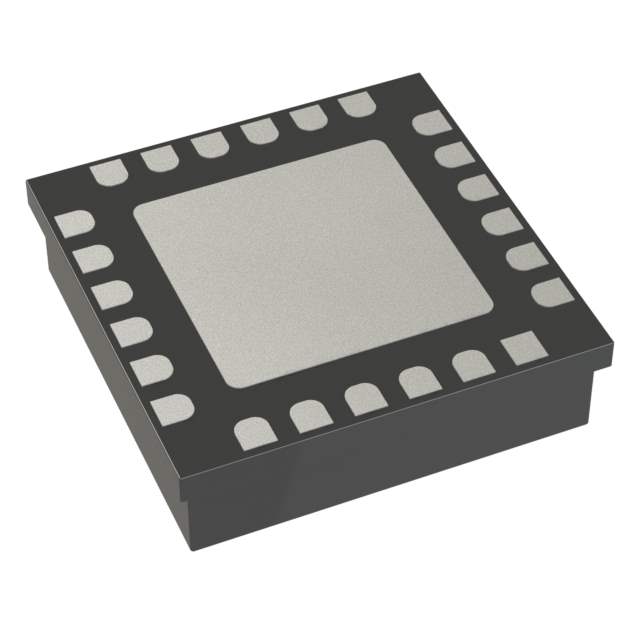

Analog Devices Inc. HMC733LC4B Overview

The HMC733LC4B from Analog Devices Inc. is a high-performance, wideband Fractional-N Phase-Locked Loop (PLL) with an integrated Voltage Controlled Oscillator (VCO). This advanced component is designed to address the needs of RF and microwave communication systems, offering a combination of versatility and high functionality in a compact package.

Key Features

• Frequency Range: The VCO frequency range of the HMC733LC4B spans from 6 GHz to 11 GHz, making it suitable for a variety of applications including point-to-point radios, VSAT, military and space, and test equipment.
• Low Phase Noise Performance: It exhibits excellent phase noise performance, which is crucial for maintaining signal integrity in communication systems, ensuring high-quality data transmission and reception.
• Output Power: The device provides a consistent output power level, which helps in maintaining signal strength across its operating frequency range.
• Programmability: It supports a wide range of programmability options via a serial or parallel interface, allowing for fine-tuning and optimization within systems.
• Integration: The integration of the PLL and VCO in a single package not only saves space but also simplifies the design and development process for system engineers.
• Package: The HMC733LC4B is housed in a compact 24-lead, 4x4 mm ceramic leadless chip carrier (LCC) package, which is suitable for surface-mount technology (SMT) and offers good thermal performance.

Applications

The versatility of the HMC733LC4B makes it an ideal choice for a wide range of applications that require high-frequency signal generation with low phase noise. Its applications include, but are not limited to:

• Fixed Wireless and Satellite Communications
• Test and Measurement Equipment
• Military and Space-Grade Hardware
• Point-to-Point and Point-to-Multipoint Radios
• Electronic Warfare and Radar Systems

With its robust design and high level of integration, the HMC733LC4B from Analog Devices Inc. represents a leading-edge solution for designers looking to enhance the performance and reliability of their RF and microwave systems.
