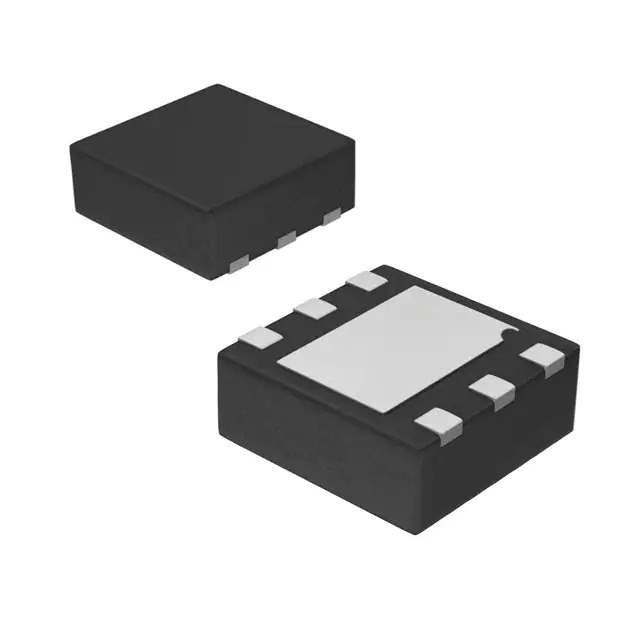

The HMC8410LP2FE is a high-performance, low noise amplifier (LNA) designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog technology. This LNA operates in a frequency range from 0.01 GHz to 10 GHz, making it an ideal choice for a wide range of RF and microwave applications. The HMC8410LP2FE is housed in a compact 2mm x 2mm, 8-lead plastic surface mount package, which allows for easy integration into space-constrained designs.

Key Features

• Frequency Range: The device covers a broad frequency spectrum from 0.01 GHz to 10 GHz, enabling its use in various applications including cellular, satellite communications, and radar systems.
• High Gain: It offers a high gain of 17 dB which ensures signal amplification with minimal signal distortion.
• Low Noise Figure: With a low noise figure of 2.3 dB, the HMC8410LP2FE provides excellent signal-to-noise ratio, essential for high-performance receivers and other sensitive RF systems.
• Output Power: The LNA delivers an output power of +22 dBm at 1 dB gain compression, providing a robust signal for downstream components.
• Supply Voltage: It operates on a single supply voltage of +5V, simplifying power supply design.
• Power Down Capability: The device includes a power-down feature that reduces the current consumption to 5 µA, offering power savings in system designs where conservation is critical.

Applications

The versatility of the HMC8410LP2FE allows it to be employed in a diverse set of applications. These include but are not limited to:

• Test Equipment and Sensors
• Point-to-Point and Point-to-Multipoint Radios
• Military End-Use
• Cellular Infrastructure
• Satellite Communications
• Fiber Optic Systems

In conclusion, the HMC8410LP2FE from Analog Devices Inc. is a powerful and versatile LNA that offers a unique combination of wide frequency range, high gain, low noise figure, and efficient power usage. Its compact package and comprehensive features make it an excellent choice for designers looking to enhance the performance of their RF and microwave systems.
