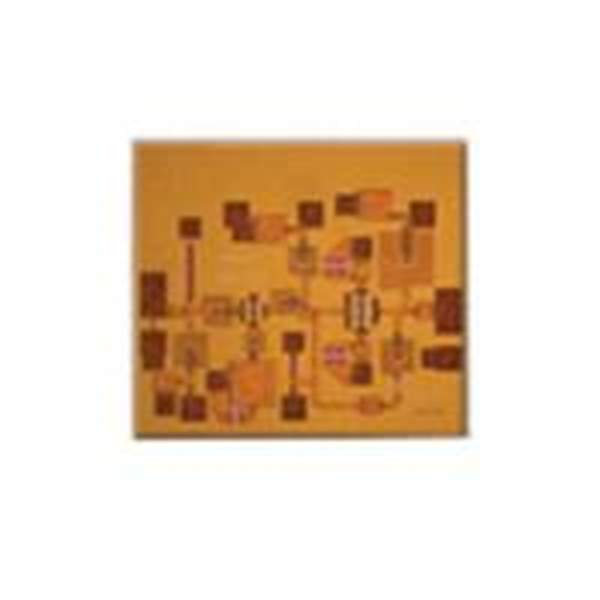

Product Overview: HMC903 from Analog Devices Inc.

The HMC903 is a high-performance, passive double-balanced mixer from Analog Devices Inc., a company renowned for its expertise in high-frequency components. This mixer is designed to provide exceptional RF performance in a wide range of applications, including wireless infrastructure, test equipment, and military systems. It is part of a family of mixers that offer excellent isolation, low conversion loss, and a broad frequency range.

Key Features

• Frequency Range: The HMC903 operates over an extensive frequency range, making it suitable for a variety of RF and IF applications. It is capable of handling RF frequencies from 11 GHz to 20 GHz and LO frequencies from 11 GHz to 21 GHz, with an IF range of DC to 3 GHz.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC903 maintains a balance between mixer efficiency and signal fidelity.
• LO/RF Isolation: The device offers excellent LO to RF isolation, typically 42 dB, which minimizes the potential for signal leakage and ensures the integrity of the signal processing.
• Input IP3: The Input Third-Order Intercept Point (IP3) of +24 dBm provides a measure of the mixer's linearity, which is critical in maintaining signal quality in complex RF environments.
• Package: The HMC903 is available in a compact, surface-mount package, which is ideal for space-constrained applications.

Applications

The HMC903 is versatile and can be used in a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Military & Space
• Test Equipment & Sensors
• Wireless Infrastructure

With its robust design and high-performance characteristics, the HMC903 from Analog Devices Inc. is an excellent choice for engineers looking for a reliable mixer component. Its ability to operate across a wide frequency range while maintaining signal integrity makes it a valuable asset in the design of advanced RF systems.
