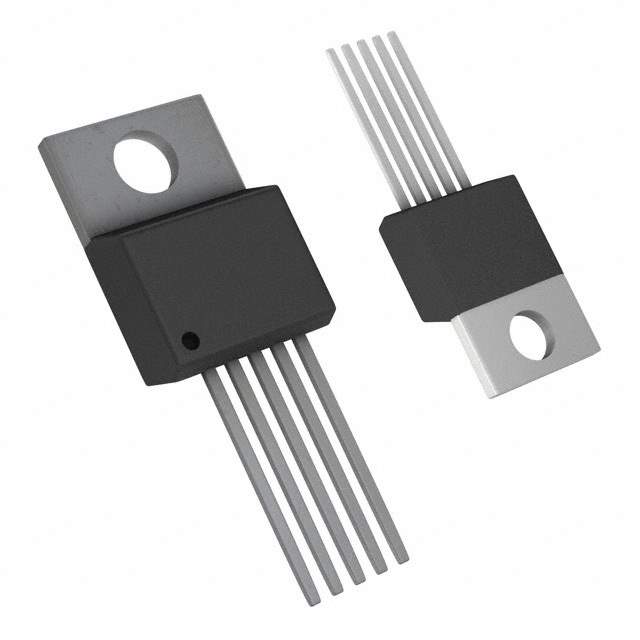

LT1963AET#06PBF

Part No LT1963AET#06PBF
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 1.21V to 20V 1.5A Automotive 5-Pin(5+Tab) TO-220
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package T
Dropout Voltage 340 mV
Lead Free Contains Lead
Max Input Voltage 20 V
Max Operating Temperature 125 °C
Max Output Voltage 20 V
Min Current Limit 1.6 A
Min Input Voltage 2.1 V
Min Operating Temperature -40 °C
Min Output Voltage 1.21 V
Number of Outputs 1
Number of Pins 5
Number of Regulators 1
Operating Supply Current 1 mA
Output Current 1.5 A
Output Type Adjustable
Output Voltage 20 V
Power Supply Rejection Ratio (PSRR) 63 dB
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8542390000, 8542390000
Win Source Part Number 1164718-LT1963AET#06PBF
Categories PMIC - Voltage Regulators - Linear
Manufacturer Analog Devices Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LT1963AET#06PBF CAD Model

Description

Product Overview: LT1963AET#06PBF - Analog Devices Inc.

The LT1963AET#06PBF is a high-performance, low dropout linear regulator (LDO) from Analog Devices Inc. that delivers a continuous output current of up to 1.5A with a dropout voltage of typically 340mV at full load. This LDO is designed for use in applications requiring low noise, fast transient response, and a stable output voltage, making it an ideal choice for sensitive RF and analog circuitry, as well as for digital electronics that demand clean and stable power supplies.

Built with an advanced design, the LT1963AET#06PBF operates over a wide input voltage range from 1.8V to 20V, allowing for flexible usage in various systems. The adjustable version of this regulator can output voltages from 1.21V to 20V, which can be set by external resistors. Additionally, the device features protection mechanisms, including overcurrent and overtemperature protection, ensuring reliable operation under different conditions.

The regulator's low noise performance is enhanced by its optimized design, which reduces the output noise to a mere 40µVRMS over a 10Hz to 100kHz bandwidth. This characteristic is particularly beneficial for precision applications such as high-end audio equipment, data acquisition systems, and medical devices.

The LT1963AET#06PBF comes in a thermally efficient TSSOP-16 package that aids in heat dissipation, contributing to its robust performance. Its package is also lead-free and RoHS compliant, aligning with environmental standards and regulations.

Key Features:

  • Output current: 1.5A
  • Dropout voltage: Typically 340mV at full load
  • Input voltage range: 1.8V to 20V
  • Adjustable output voltage: 1.21V to 20V
  • Low output noise: 40µVRMS (10Hz to 100kHz)
  • Overcurrent and overtemperature protection
  • Stable with low ESR, ceramic output capacitors
  • Fast transient response
  • TSSOP-16 package for enhanced thermal performance
  • Lead-free and RoHS compliant

With its robust feature set and superior performance characteristics, the LT1963AET#06PBF from Analog Devices Inc. is a versatile and reliable choice for powering a wide range of sophisticated electronic devices.
