LT3009ESC8-5#TRMPBF - Low Dropout Linear Regulator from Analog Devices Inc.

The LT3009ESC8-5#TRMPBF is a high-performance, low dropout linear regulator (LDO) designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog technology. This LDO is specifically engineered to deliver a stable and reliable power supply, making it an ideal choice for sensitive electronic applications where a precise voltage is critical for optimal performance.

This regulator offers a fixed output voltage of 5V, which is maintained with high accuracy. The device is capable of delivering up to 20mA of continuous output current, making it suitable for low-power applications. The LT3009 series is designed with a low quiescent current of just 3µA, which significantly enhances the battery life of portable devices.

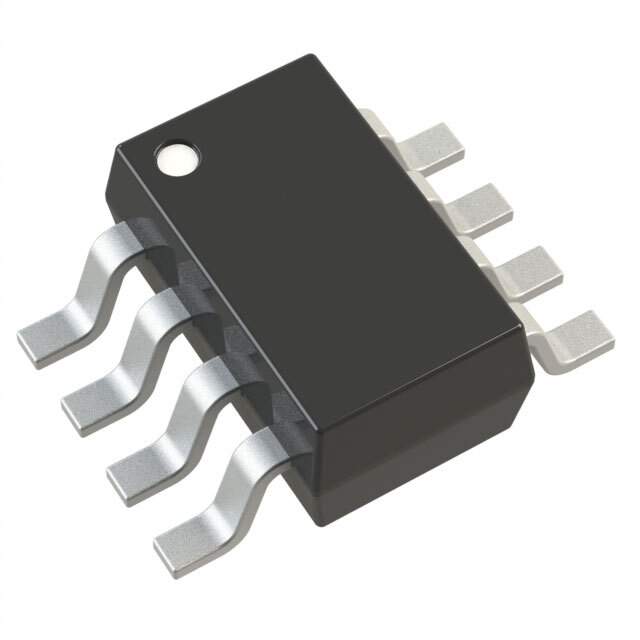

The LT3009ESC8-5#TRMPBF comes in a compact SC-70 package, which is highly advantageous for space-constrained applications. It is also available in a tape and reel format, denoted by the 'TR' in its part number, facilitating easy integration into automated manufacturing processes.

One of the key features of this LDO is its low dropout voltage, which ensures efficient operation even when the input voltage is very close to the output voltage. This characteristic is particularly useful in scenarios where the input voltage fluctuates or is derived from a battery that discharges over time.

The device also includes several protective features to ensure the longevity and reliability of both the regulator and the system it powers. These features include over-temperature protection and short-circuit protection, which safeguard the device under abnormal operating conditions.

Overall, the LT3009ESC8-5#TRMPBF is a versatile and robust solution for applications requiring a high-quality power supply with minimal power loss. Its low quiescent current, high accuracy, and protective features make it an excellent choice for portable devices, microcontroller power supplies, and other sensitive electronics that require a stable and efficient power source.

For detailed specifications and application guidance, designers are encouraged to reference the official datasheets and support documentation provided by Analog Devices Inc.
