Product Overview: LT3086HFE#PBF from Analog Devices Inc.

The LT3086HFE#PBF is a robust and versatile low dropout linear regulator (LDO) from Analog Devices Inc., designed to cater to a wide array of applications requiring precise voltage regulation. This high-performance component is part of the expansive LT series of power management ICs, known for their reliability and efficiency.

Key Features:

• Adjustable Output: The LT3086HFE#PBF offers an adjustable output voltage range from 0.4V to 32V, which can be set with a single resistor. This feature provides flexibility for designers to use the same part in different circuits with varying voltage requirements.
• High Current Capability: It is capable of delivering up to 2.1A of continuous output current, making it suitable for powering a broad range of devices, from sensitive RF applications to robust microcontrollers and digital circuits.
• Extended Temperature Range: The device operates over an industrial temperature range from -40°C to 125°C, ensuring reliable performance in harsh environments and across a wide temperature spectrum.
• Stability: The regulator is stable with a minimum of 10μF of output capacitance, which can be increased without bound to improve transient response and noise performance.
• Protection Features: It includes several built-in protection features such as overcurrent protection, overtemperature protection, and reverse battery protection, thereby enhancing the longevity and safety of both the regulator and the overall system.

Applications:

The LT3086HFE#PBF is an ideal solution for a variety of applications that require a stable and reliable power supply. It is commonly used in:

• Automotive electronics
• Industrial control systems
• Telecommunication infrastructure
• Portable and battery-powered devices
• Power supplies for sensitive analog and digital circuits

Package and Quality:

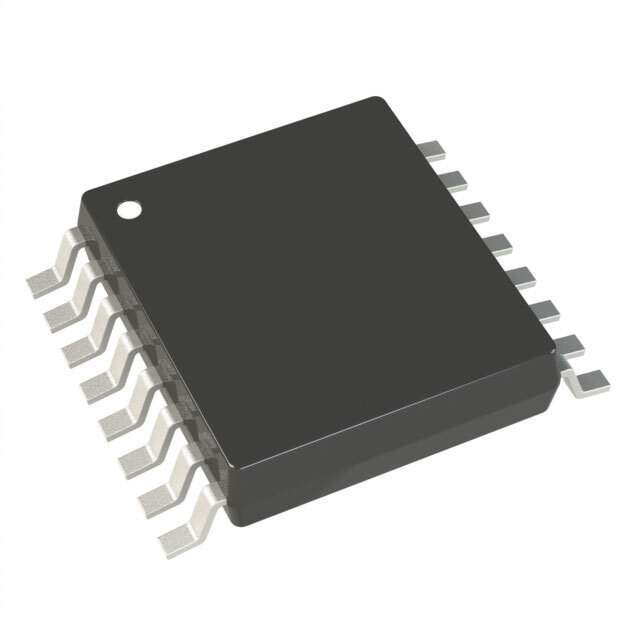

The device comes in a thermally enhanced 16-lead TSSOP package, designated by the part number suffix 'HFE'. The package is designed to efficiently dissipate heat, ensuring that the regulator maintains optimal performance even under high power operation. Additionally, the LT3086HFE#PBF meets the rigorous quality standards set by Analog Devices Inc., guaranteeing high reliability for critical applications.

With its comprehensive feature set and robust design, the LT3086HFE#PBF from Analog Devices Inc. stands out as a superior choice for designers seeking a high-quality, adaptable LDO regulator for their power management needs.
