Product Overview: LT3511HMS#TRPBF

The LT3511HMS#TRPBF is a high-performance, monolithic switching regulator manufactured by Analog Devices Inc. This component is designed to deliver efficient power conversion with a wide input voltage range, making it suitable for a variety of industrial, automotive, and telecommunication applications. The LT3511HMS#TRPBF operates as a step-down converter, also known as a buck converter, which reduces higher input voltage to a lower stable output voltage with high efficiency.

Key Features

• Wide Input Voltage Range: The device supports an input voltage range from 4.3V to 100V, providing versatility for different power supply configurations and ensuring compatibility with a wide array of input sources.
• High Efficiency: With its advanced design, the LT3511HMS#TRPBF achieves high conversion efficiency, which minimizes heat generation and improves overall system reliability.
• Adjustable Switching Frequency: The switching frequency can be programmed between 100kHz and 700kHz or synchronized to an external clock, allowing for optimization of efficiency and component size.
• Integrated Features: The device includes a 0.8V feedback reference voltage, over-temperature protection, and a power good flag, which simplifies the design of reliable power systems.
• Robust Protection Circuits: It is equipped with features like overcurrent protection, undervoltage lockout, and thermal shutdown to protect the system under abnormal conditions.

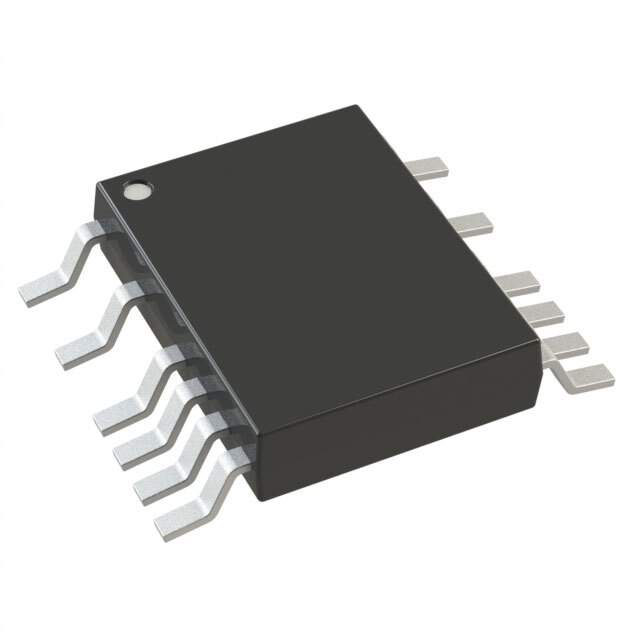

• Compact Package: Housed in a small MSOP-16 package, the LT3511HMS#TRPBF saves valuable board space and is ideal for space-constrained applications.

Applications

• Automotive and Industrial Power Supplies
• Telecommunications Infrastructure
• Portable and Battery-Powered Equipment
• Power over Ethernet (PoE) Applications
• Distributed Power Systems

The LT3511HMS#TRPBF from Analog Devices Inc. is a reliable and versatile solution for designers seeking a high-voltage, high-efficiency, and robust power converter. Its comprehensive features and protections ensure that it can meet the rigorous demands of a wide range of applications, providing consistent performance and durability.
