Product Overview: LT3756EUD#TRPBF by Analog Devices Inc.

The LT3756EUD#TRPBF is a sophisticated LED driver IC designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This innovative component is specifically engineered to address the demanding requirements of driving high-brightness LEDs with precision and efficiency.

Key Features and Benefits

• Wide Input Voltage Range: The device operates with a broad input voltage range from 6V to 100V, making it versatile for various LED applications, including automotive, industrial, and architectural lighting.
• High Output Voltage Capability: It can produce an output voltage up to 100V, which is suitable for multiple LED configurations and ensures consistent lighting even under variable conditions.
• Integrated 75mΩ, 100V Low-Side MOSFET: The inclusion of a high-voltage MOSFET within the IC aids in reducing external component count, thereby simplifying the design and saving board space.
• Constant-Current and Constant-Voltage Regulation: The LT3756EUD#TRPBF can be configured for both constant-current and constant-voltage applications, ensuring optimal performance for a wide range of LED driving needs.
• Adjustable Frequency: With an adjustable switching frequency from 100kHz to 1MHz, designers can optimize the driver for efficiency or component size.
• Thermal Protection: The device includes thermal shutdown protection, which prevents damage from overheating, enhancing the longevity and reliability of the application.

Applications

The LT3756EUD#TRPBF is ideal for a variety of high-brightness LED applications, such as:

• General Purpose Automotive Lighting
• Industrial and Commercial Lighting Systems
• LED Backlighting
• Street and Area Lighting
• Emergency Vehicle Warning Lights

Package and Availability

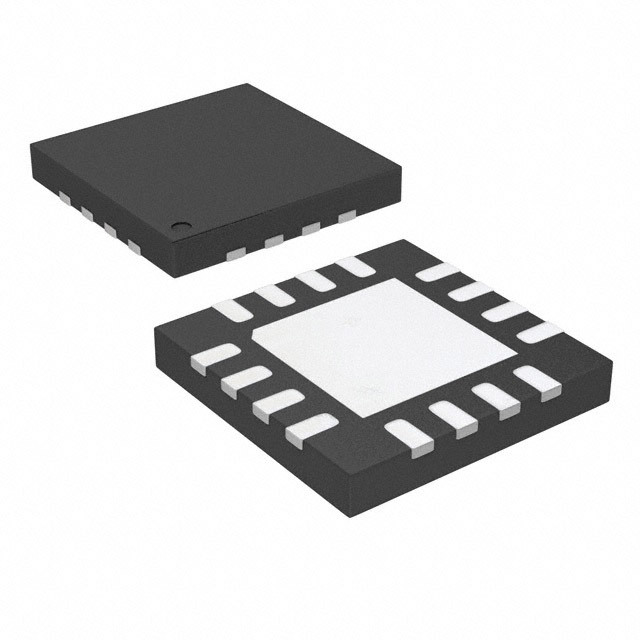

This LED driver IC comes in a compact 16-lead QFN package, offering a space-saving solution for modern LED lighting designs. The LT3756EUD#TRPBF is available in tape and reel packaging, designated by the suffix 'TRPBF,' which is suitable for automated assembly processes.

With its robust feature set and flexible design options, the LT3756EUD#TRPBF from Analog Devices Inc. is an excellent choice for designers seeking a high-performance LED driver that can meet the challenges of today's dynamic lighting requirements.
