Product Overview: LT6204CS#TRPBF

The LT6204CS#TRPBF from Analog Devices Inc. is a high-performance, low-noise, low-voltage, dual operational amplifier (op-amp) that is designed to cater to a wide array of applications requiring precision and efficiency. This op-amp boasts a unique combination of speed, low noise, and low input bias currents, making it ideal for high-speed signal conditioning systems, filters, and differential amplifiers.

Key Features

• High Speed: With a gain bandwidth product of 100MHz, the LT6204CS#TRPBF is capable of high-speed operation, making it suitable for fast signal processing applications.
• Low Noise: A low input referred noise voltage of 8nV/√Hz ensures that the signal integrity is maintained, especially in audio and instrumentation applications.
• Rail-to-Rail Output: The rail-to-rail output stage provides maximum dynamic range, which is especially beneficial when operating with low supply voltages.
• Low Distortion: The op-amp features low harmonic distortion, which is critical for precision amplification in audio and measurement systems.
• Low Power: With a supply current of just 1mA per amplifier, the LT6204CS#TRPBF is an excellent choice for power-sensitive applications.
• Wide Supply Range: It operates from a supply voltage range of 2.5V to 12.6V, accommodating various power requirements.
• Input Bias Current: The low input bias current of 350pA makes it suitable for precision integrators or charge amplifiers.

Applications

The versatility of the LT6204CS#TRPBF lends itself to a broad spectrum of applications, including:

• Active Filters
• Fast Amplifiers
• Buffer Amplifiers
• ADC/DAC Gain Blocks
• Audio Amplifiers
• Test Equipment
• Medical Instrumentation

Product Specifications

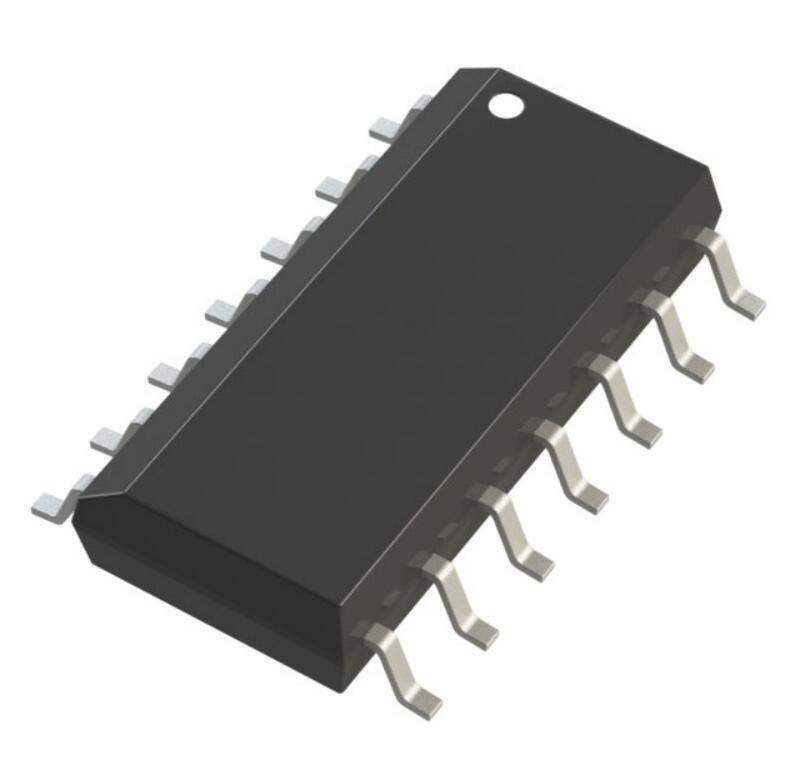

The LT6204CS#TRPBF comes in a compact 16-lead narrow SOIC package, which is surface-mountable and suitable for dense PCB layouts. Its extended temperature range from -40°C to 85°C ensures reliable operation across various environmental conditions.

Overall, the LT6204CS#TRPBF by Analog Devices Inc. is a superior choice for designers looking for an op-amp that delivers both high performance and efficiency, without compromising on noise or speed.
