Analog Devices Inc. LTC3115HFE-1#TRPBF Overview

The LTC3115HFE-1#TRPBF is a high-performance, synchronous buck-boost DC/DC converter designed by Analog Devices Inc. to manage power supply requirements in a wide variety of applications. This versatile component is capable of delivering up to 2A of continuous output current and can operate over a wide input voltage range of 2.7V to 15V, making it an ideal solution for battery-powered devices where the input voltage can vary significantly.

Key Features

• Wide Input Voltage Range: The device supports an input voltage range from 2.7V to 15V, accommodating a variety of power sources.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 5V, providing flexibility for different circuit requirements.
• High Efficiency: With its synchronous rectification and low quiescent current, the LTC3115HFE-1#TRPBF offers high efficiency across a broad range of load currents.
• Pin-Selectable Operating Modes: Users can select between Burst Mode operation for high efficiency at light loads and fixed frequency operation for low noise performance.

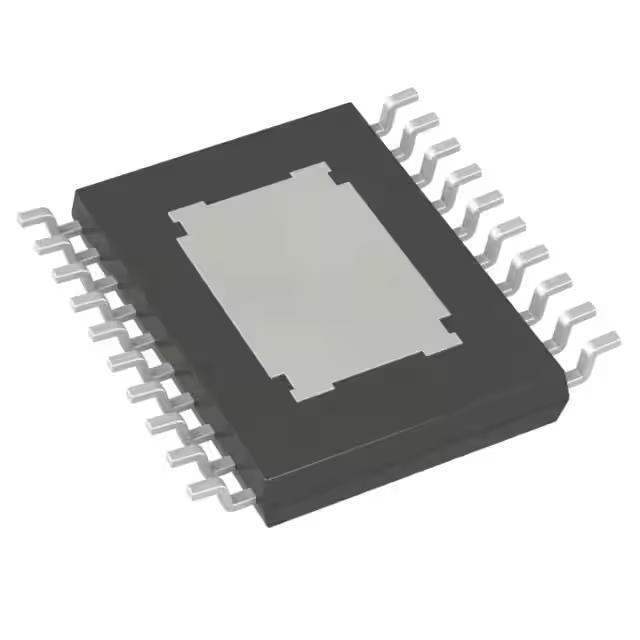

• Robust Thermal Performance: The device is available in a thermally enhanced, 20-lead TSSOP package, ensuring reliable operation under varying conditions.
• Integrated Fault Protection: Features such as over-temperature protection, overvoltage protection, and short-circuit protection enhance the safety and reliability of the application.

Applications

The LTC3115HFE-1#TRPBF is suitable for a diverse range of applications, including:

• Portable instruments
• Industrial handhelds
• Automotive power supplies
• Medical devices
• Wireless modems
• Point of Sale (POS) terminals

With its robust feature set and flexible design, the LTC3115HFE-1#TRPBF from Analog Devices Inc. is an excellent choice for designers seeking a reliable and efficient power management solution. Its ability to maintain stable output voltages across a wide range of input sources and load conditions makes it a versatile component for complex electronic systems.
