Analog Devices Inc. LTC3877IUK#TRPBF Dual Output Synchronous Step-Down DC/DC Controller

The LTC3877IUK#TRPBF from Analog Devices Inc. is a high-performance, dual output synchronous step-down DC/DC controller designed to drive all N-channel power MOSFET stages in a space-efficient manner. This innovative component is ideal for a wide range of applications, including computing, telecommunications, industrial, and distributed power systems.

With its wide input voltage range of 4.5V to 38V, the LTC3877IUK#TRPBF can regulate output voltages from 0.6V to 5.5V, making it a versatile solution for various power supply designs. It boasts a robust design with a high operating frequency of up to 850kHz, which allows for a compact solution with small inductors and capacitors, leading to a reduction in overall board space and system cost.

One of the key features of this controller is its phase-lockable frequency of 75kHz to 850kHz, which enables the use of a fixed frequency in noise-sensitive applications. Additionally, it offers an optional spread spectrum operation for improved electromagnetic interference (EMI) performance. The LTC3877IUK#TRPBF also supports current mode operation, which provides excellent transient response and cycle-by-cycle current limiting.

The device includes a differential output voltage sensing for enhanced voltage regulation accuracy, especially in systems with high current outputs and significant power plane impedance. It is equipped with an internal LDO for the gate drive bias voltage, which can also be supplied externally for enhanced efficiency.

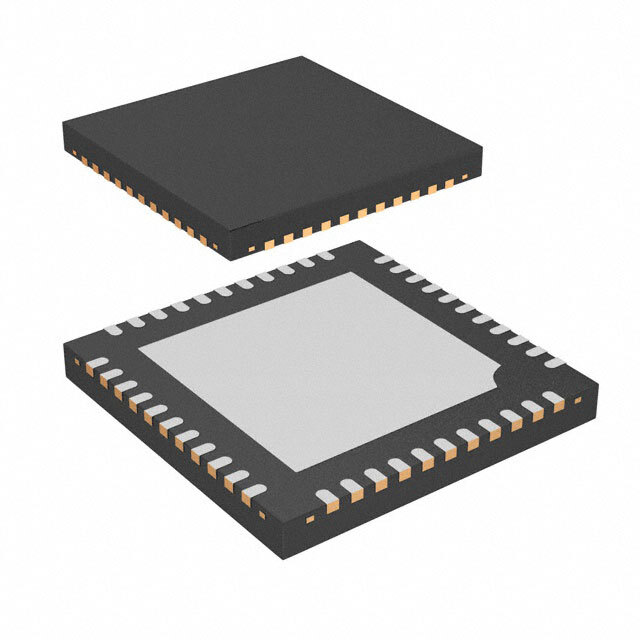

For protection, the LTC3877IUK#TRPBF incorporates overvoltage, undervoltage, and overcurrent protection. It also features a power good output, which can be used for sequencing and monitoring purposes. This product is offered in a 5mm x 5mm QFN package and is specified for operation from -40°C to 125°C, ensuring reliable performance in extreme environments.

As a highly integrated and efficient solution, the LTC3877IUK#TRPBF from Analog Devices Inc. is an excellent choice for designers looking to optimize their power management systems with a reliable and flexible DC/DC controller.
