Analog Devices Inc. LTC4415IDHC#TRPBF Dual Ideal Diode PowerPath Controller

The LTC4415IDHC#TRPBF from Analog Devices Inc. is a high-performance, dual-channel PowerPath controller designed for applications requiring seamless transition between two power sources. This component ensures a smooth switch-over from one supply to another without causing any interruption to the load, making it an essential part of power management solutions in modern electronic devices.

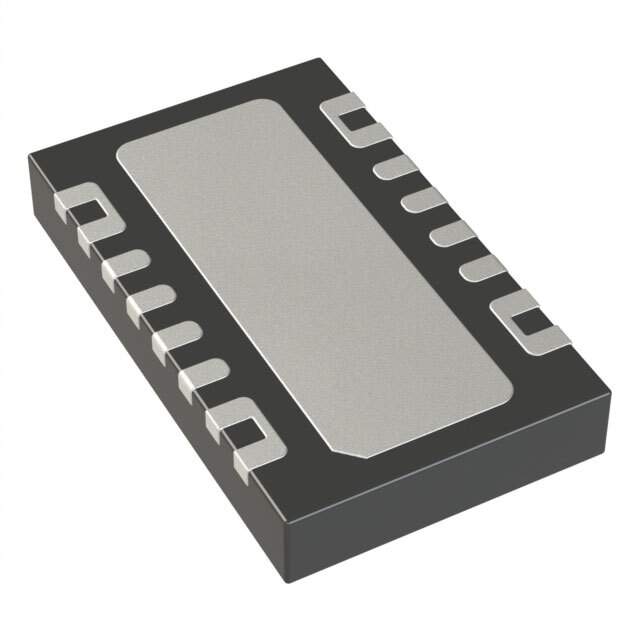

Encased in a 16-lead DFN (5mm x 3mm) package, the LTC4415IDHC#TRPBF offers a compact footprint, ideal for space-constrained applications. It operates over a voltage range of 2.5V to 5.5V, allowing it to support a wide array of common power rails. Each channel can conduct up to 4A of continuous current, making it suitable for high-current applications.

The device features low-loss PowerPath control, which minimizes the voltage drop by utilizing internal MOSFETs, resulting in higher efficiency and reduced heat generation. The LTC4415IDHC#TRPBF boasts a low quiescent current, which is critical for battery-powered devices, where power conservation is paramount.

With its fast switch-over capability, the LTC4415IDHC#TRPBF ensures that sensitive loads remain powered without interruption, even in the event of a supply glitch or switchover. This makes it an excellent choice for portable devices, medical equipment, and industrial applications where reliability is crucial.

Additional features of the LTC4415IDHC#TRPBF include cross-conduction prevention, which safeguards the device against potential damage caused by simultaneous conduction of both internal MOSFETs. Moreover, it provides status outputs that can be used to indicate which power source is currently being used to supply the load, enabling intelligent power management strategies.

Overall, the LTC4415IDHC#TRPBF is a versatile and reliable solution for managing dual power sources in a variety of applications. Its robust design and advanced features ensure that it can meet the needs of even the most demanding power management tasks.

For more detailed information, including the full datasheet, application notes, and design resources, visit the Analog Devices Inc. website or contact their support team.
