Product Overview: LTC5552IUDB#TRMPBF from Analog Devices Inc.

The LTC5552IUDB#TRMPBF is a high-performance, double-balanced mixer from Analog Devices Inc., designed to address the demanding requirements of wireless infrastructure and RF applications. This advanced mixer component offers a broad frequency range, high linearity, and a robust feature set, making it an ideal choice for design engineers looking to enhance their RF and microwave communication systems.

Key Features

• Wide Frequency Range: The LTC5552IUDB#TRMPBF operates over a wide frequency range, supporting RF frequencies from 3GHz to 20GHz, and LO frequencies from 2GHz to 20GHz, which makes it versatile for various applications including satellite communications, military systems, and broadband wireless services.
• High Linearity: It provides excellent linearity with an Input IP3 of 25.7 dBm at 14GHz, ensuring high-quality signal transmission and reception with minimal distortion, which is critical for high-performance systems.
• Integrated LO Buffer: The mixer includes an integrated LO buffer, which reduces the need for external components and simplifies the overall design process, while also providing consistent performance across the specified frequency range.
• Low LO Drive: It requires a low LO drive level, which minimizes power consumption and aids in maintaining the efficiency of the overall system.
• IF Frequency: The intermediate frequency (IF) range of the LTC5552IUDB#TRMPBF is from DC to 6GHz, accommodating a wide range of potential applications and designs.

Package and Quality

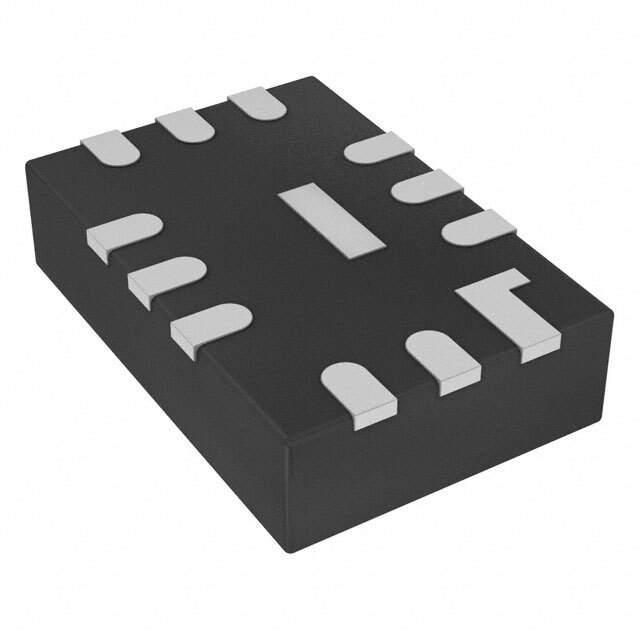

The LTC5552IUDB#TRMPBF is available in a compact, 12-lead plastic QFN package with an exposed paddle for enhanced thermal performance. The product is designed to meet the rigorous standards of the industry, ensuring reliability and durability in various operating conditions. It is RoHS compliant and lead-free, reflecting Analog Devices Inc.'s commitment to environmental responsibility.

Applications

With its versatile features, the LTC5552IUDB#TRMPBF is well-suited for a wide range of applications, including point-to-point and point-to-multipoint radios, test equipment, radar systems, and other RF and microwave communication technologies. Its ability to deliver high performance across a broad spectrum of frequencies makes it a go-to component for engineers seeking to optimize their RF designs.

Overall, the LTC5552IUDB#TRMPBF from Analog Devices Inc. represents a blend of performance, integration, and quality, tailored for the sophisticated needs of today's RF and microwave systems.
