Introducing the LTC5567IUF from Analog Devices Inc.

The LTC5567IUF is a state-of-the-art downconverting mixer designed by Analog Devices Inc., a leader in high-performance analog technology. This component is engineered to meet the rigorous demands of modern RF and microwave systems, providing exceptional performance and versatility in a compact package.

Key Features of the LTC5567IUF

• High Linearity: The LTC5567IUF offers excellent linearity with an Input IP3 (third-order intercept point) of 25.7 dBm at 900 MHz, ensuring clear signal processing in complex environments.
• Wide Frequency Range: This mixer is capable of operating over a broad frequency range, with an RF frequency range of 300 MHz to 4 GHz and an LO frequency range of 350 MHz to 4 GHz, making it highly versatile for various applications.
• Integrated LO Buffer: It features an integrated LO buffer, which simplifies the design by eliminating the need for an external local oscillator amplifier.
• Low Power Consumption: With a supply voltage of 3.3V, the LTC5567IUF maintains low power consumption, requiring only 132 mA of supply current.

Applications

The LTC5567IUF is well-suited for a range of applications, including:

• Cellular base stations
• Point-to-point backhaul radios
• RF instrumentation
• Software-defined radios
• Military systems

Compact and Durable Design

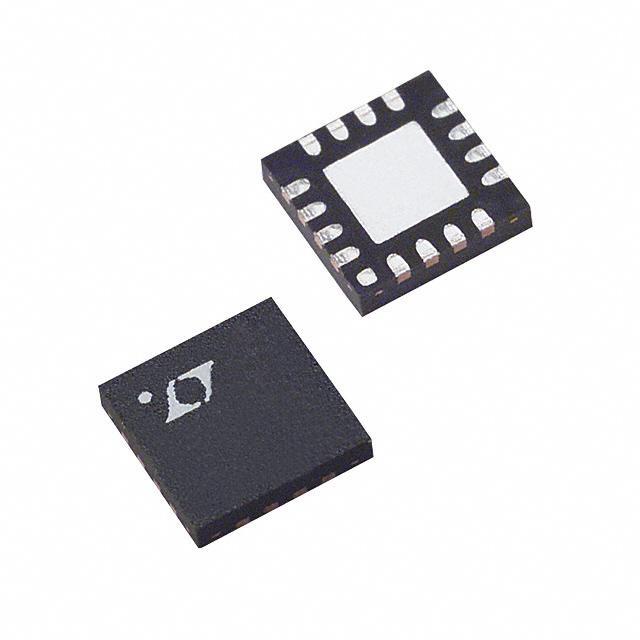

Encased in a compact 3mm x 3mm QFN package, the LTC5567IUF is designed to save space on the PCB while still delivering robust performance. Its operating temperature range from -40°C to 105°C ensures reliability in a variety of environmental conditions.

Conclusion

The LTC5567IUF from Analog Devices Inc. represents a blend of high-performance, efficiency, and design flexibility, making it an ideal choice for designers looking to enhance their RF and microwave systems. With its high linearity, wide frequency range, and integrated features, this downconverting mixer is poised to deliver superior performance in a multitude of communication and signal processing applications.
