Analog Devices Inc. LTC7124EUDD#TRPBF: High-Performance Step-Down Regulator

The LTC7124EUDD#TRPBF is a cutting-edge, dual-channel, synchronous step-down DC/DC regulator from the renowned manufacturer Analog Devices Inc. This high-efficiency power solution is designed to meet the rigorous demands of a wide range of applications, including telecommunications, industrial systems, and portable devices. Its exceptional power delivery and precision control make it an ideal choice for designers looking to optimize power management in their circuits.

Key Features and Benefits

• High Efficiency: The LTC7124EUDD#TRPBF boasts a high efficiency that reduces power loss and improves system performance. This efficiency is maintained over a wide range of output currents, ensuring optimal operation under varying load conditions.
• Dual Channel: With two independent DC/DC converters in one package, this regulator provides a compact solution for managing multiple power rails, saving space on the PCB and simplifying the power supply design.
• Wide Input Voltage Range: The device operates from an input voltage range of 4.5V to 20V, making it versatile for use in systems with different power requirements.
• Adjustable Output Voltage: Each channel can be independently set to an output voltage ranging from 0.6V to 99% of the input voltage, providing flexibility for powering a variety of loads.
• Fast Transient Response: The LTC7124EUDD#TRPBF is designed to respond quickly to changes in load, ensuring stable output voltage even during rapid load swings.
• Robust Protection Features: The device includes overvoltage, overcurrent, and overtemperature protection, safeguarding the regulator and the system it powers from potential damage.

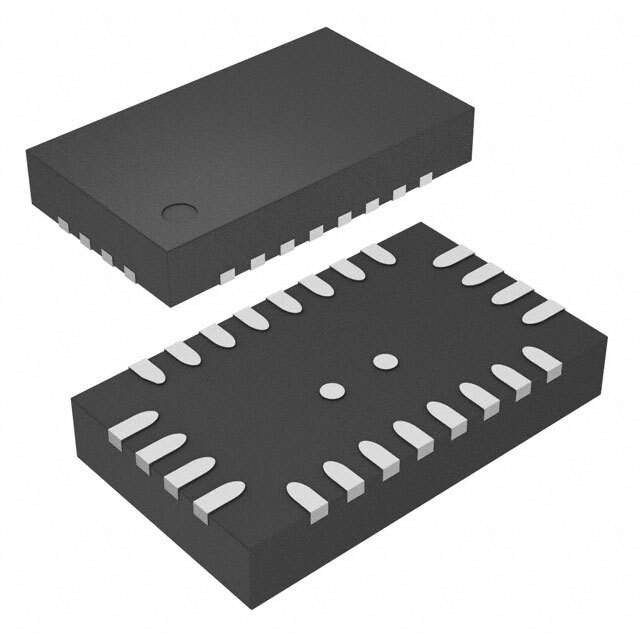

• Compact Package: Housed in a 24-lead QFN (4mm x 4mm) package, the LTC7124EUDD#TRPBF is designed for space-constrained applications.

Applications

The versatile nature of the LTC7124EUDD#TRPBF makes it suitable for a wide array of applications. It is especially well-suited for:

• Telecommunication and networking equipment
• Industrial control systems
• Automotive power systems
• Portable and battery-powered devices
• Distributed power systems

Overall, the LTC7124EUDD#TRPBF from Analog Devices Inc. represents a powerful, flexible, and reliable solution for modern power management challenges. Its performance and compact form factor make it an excellent choice for engineers looking to enhance the efficiency and robustness of their electronic designs.
