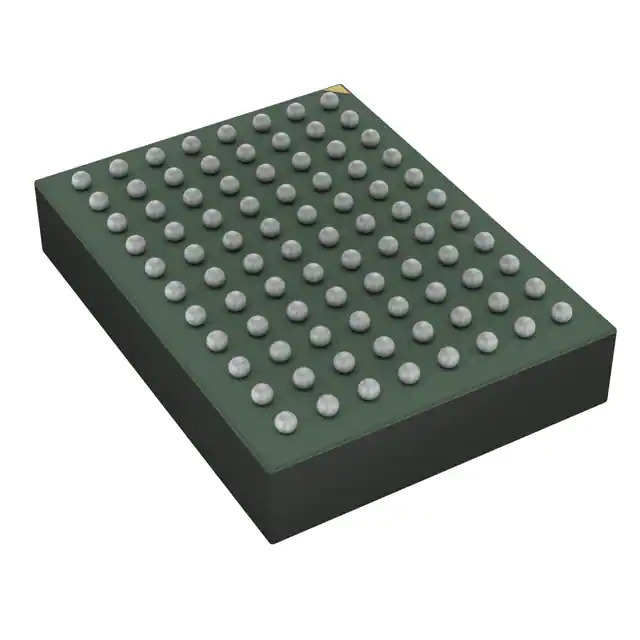

The LTM4646IY#PBF is a high-performance, dual 10A or single 20A, step-down µModule (micro module) regulator from Analog Devices Inc. This advanced power solution integrates the inductor, MOSFETs, a dual DC/DC regulator, and all the supporting components in a compact, encapsulated package. Designed for a variety of applications, this regulator simplifies the design process for power supply systems, ensuring a reliable and efficient power management solution.

Key Features

• Wide Input Voltage Range: Operates over a 4.5V to 20V input voltage range, making it versatile for various applications.
• High Output Current: Capable of delivering dual 10A outputs or a single 20A output, providing ample power for demanding applications.
• Configurable Outputs: Outputs can be configured in parallel, series, or independent modes, offering design flexibility.
• High Efficiency: High-efficiency performance reduces power loss and improves system reliability.
• Compact Design: The µModule package simplifies PCB layout and reduces board space requirements.
• Protection Features: Includes overvoltage, overcurrent, and over-temperature protection for enhanced safety and durability.
• Fast Transient Response: Ensures stable operation during rapid load changes.
• Precision Enable: Provides a precision enable pin for accurate turn-on and turn-off thresholds.
• Power Good Indicators: Each channel has a power good indicator for real-time monitoring of the system status.

Applications

• Datacom/Telecom Systems
• FPGAs, ASICs, and DSPs
• Industrial and Test Equipment
• Medical Devices
• Military and Aerospace Systems

Product Specifications

The LTM4646IY#PBF by Analog Devices Inc. is an all-in-one power management solution that delivers high efficiency and performance in a compact package, suitable for a wide range of demanding applications.
