The LTM8023MPY is a high-performance, µModule® (micro-module) step-down regulator from Analog Devices Inc. This compact, complete system-in-package (SiP) integrates the inductor, power switches, DC/DC controller, and all the supporting components in a single package. Designed for ease of use and efficiency, the LTM8023MPY is ideal for a wide range of applications, including industrial, automotive, and communication systems.

Operating within an input voltage range of 3.6V to 36V, the LTM8023MPY can deliver a continuous output current of up to 2A with an output voltage range adjustable from 0.8V to 10V. This flexibility makes it suitable for a variety of power supply configurations. Its high efficiency and low quiescent current minimize power loss, ensuring reliable performance in power-sensitive designs.

The encapsulated design of the LTM8023MPY provides enhanced thermal performance and reduces electromagnetic interference (EMI), which is critical in noise-sensitive applications. Furthermore, the device is rated for operation over a wide temperature range, making it robust for challenging environments.

Key Features:

• Integrated inductor, power switches, DC/DC controller, and supporting components
• Wide input voltage range: 3.6V to 36V
• Adjustable output voltage range: 0.8V to 10V
• Up to 2A continuous output current
• High efficiency and low quiescent current
• Robust thermal performance and EMI reduction
• Wide operating temperature range
• Compact, surface-mount package

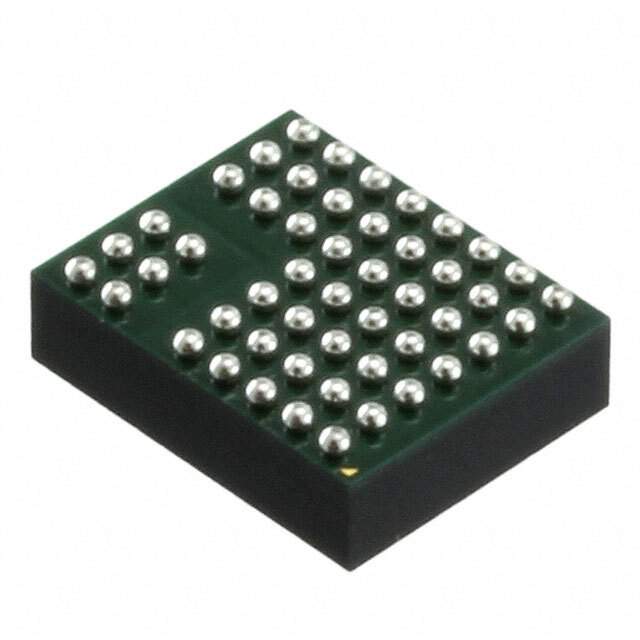

The LTM8023MPY comes in a compact, surface-mount LGA package that is easy to solder onto a printed circuit board and is suitable for automated assembly processes. Its small footprint allows designers to save valuable board space while maintaining high power density.

In conclusion, the LTM8023MPY from Analog Devices Inc. is a highly versatile and efficient solution for those seeking a complete power management solution in a small package. Its integration of multiple components into a single module simplifies design, accelerates time-to-market, and ensures consistent performance for a variety of demanding applications.
