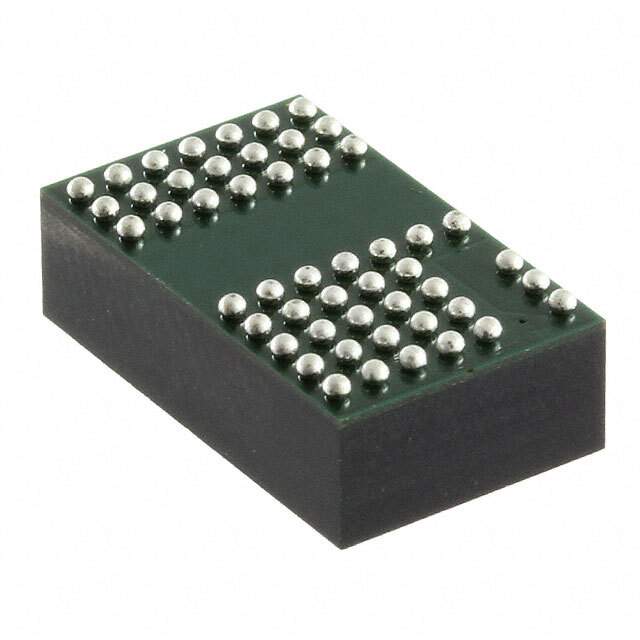

The LTM8046MPY from Analog Devices Inc. is a highly versatile and robust DC/DC converter module designed to meet a wide range of power supply requirements. It is part of Analog Devices' µModule (micromodule) series, which are complete system-in-package (SiP) solutions that minimize design time and simplify PCB layout by integrating the DC/DC controller, power switches, inductor, and support components all within a compact, surface-mount package.

Key Features

• Wide Input Voltage Range: The LTM8046MPY operates over a wide input voltage range of 3.1V to 32V, making it suitable for a variety of input sources, including industrial supplies and automotive batteries.
• Adjustable Output Voltage: It delivers an adjustable output voltage from 0.97V up to 18V, which can be set with a single resistor, offering flexibility for different applications.
• High Efficiency: With its high efficiency design, it ensures minimal heat generation and reliable performance even in demanding environments.
• Integrated Components: The module includes an inductor, power switches, and all support components, which reduces the bill of materials and simplifies the overall design process.
• Thermal Performance: The LTM8046MPY is designed for optimal thermal performance, featuring over-temperature protection and a wide operating temperature range, making it ideal for industrial and automotive applications.

Applications

The LTM8046MPY is suitable for a broad spectrum of applications, including:

• Telecommunications
• Industrial equipment
• Automotive systems
• Datacom infrastructure
• Portable devices
• Medical devices

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the LTM8046MPY is no exception. It is designed to meet rigorous standards, ensuring consistent performance and durability in a variety of conditions. With its comprehensive protection features and robust design, the LTM8046MPY is a reliable choice for designers seeking a high-performance power solution.
