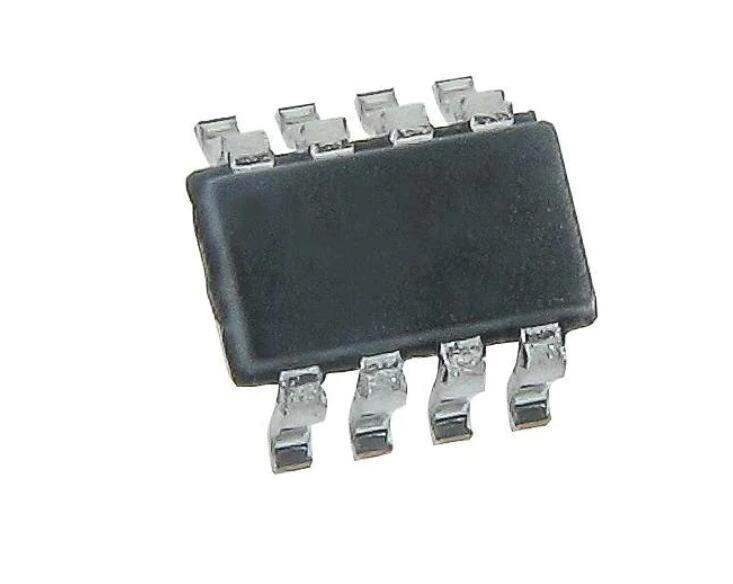

The MAX4469EKA from Analog Devices Inc. is a high-performance, low-power, operational amplifier designed for a wide range of applications. This device is particularly well-suited for audio and sensor signal amplification due to its low noise and distortion characteristics. Enclosed in a compact SOT-23 package, the MAX4469EKA offers a blend of features that make it ideal for portable and space-constrained applications.

Key Features

• Low Voltage Operation: The device operates from a single supply voltage as low as 2.4V up to 5.5V, making it compatible with a variety of low-voltage systems and battery-powered devices.
• High Impedance: The input impedance is high, allowing for easy interfacing with sensors and other high-impedance sources without significant loading effects.
• Low Noise Performance: With its low input voltage noise, the MAX4469EKA ensures clear and precise signal amplification, which is critical for audio and instrumentation applications.
• Low Distortion: The low total harmonic distortion (THD) characteristic of the amplifier contributes to high-fidelity audio signal processing and accurate sensor signal representation.
• Rail-to-Rail Output: The rail-to-rail output capability allows for maximum dynamic range, which is particularly useful in low-voltage applications.
• Power-Saving Shutdown Mode: An added shutdown feature enables the user to reduce power consumption when the amplifier is not in use, extending battery life in portable devices.

Applications

• Portable Audio Devices
• Microphone Preamplifiers
• Active Filters
• Medical Instrumentation
• Battery-Powered Equipment
• Data Acquisition Systems

The MAX4469EKA is designed for ease of use and integration into a variety of circuits. Its combination of low power consumption, high fidelity, and compact packaging make it a versatile choice for designers looking to enhance their audio or sensor-based projects. Analog Devices Inc. ensures that this operational amplifier meets the rigorous requirements for consistent performance and reliability in a multitude of applications.

For detailed specifications and application guidance, designers should refer to the MAX4469EKA datasheet provided by Analog Devices Inc.
