Analog Devices Inc. MAX6377XR27 Overview

The MAX6377XR27 from Analog Devices Inc. is a precision, low-power voltage monitor with a preset V<sub>CC reset threshold of 2.7V. Designed to maintain system integrity, this small but robust component is essential for applications requiring reliable voltage monitoring to prevent data loss and hardware damage during power failures or unexpected voltage drops.

Key Features

• Voltage Monitoring Accuracy: The device ensures precise monitoring with tight threshold accuracy, which is vital for sensitive electronic systems.
• Low Power Consumption: With its low-power design, the MAX6377XR27 is ideal for battery-operated devices, helping to extend battery life and reduce energy costs.
• Manual Reset Input: This feature allows for an external signal to trigger a system reset, providing additional control for system diagnostics and recovery procedures.
• Reset Timeout: The product has a built-in delay before the output reset signal is deasserted, ensuring that the system has stabilized before normal operation resumes.

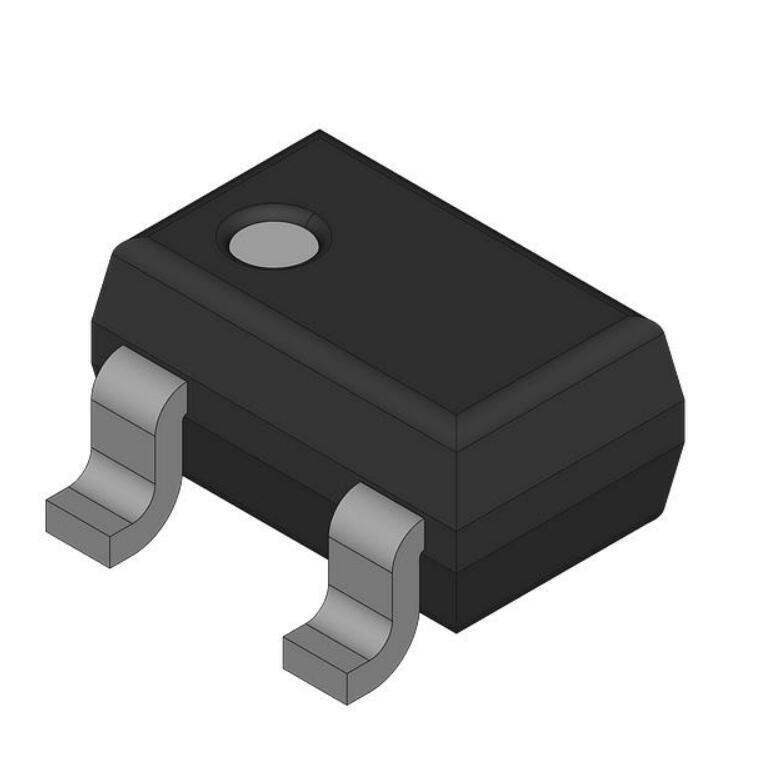

• Compact Packaging: The device comes in a small SC70 package, making it suitable for space-constrained applications without compromising performance.

Applications

The MAX6377XR27 is versatile and can be used in a wide range of applications, including:

• Portable/Battery-Powered Equipment
• Microprocessor/Microcontroller Systems
• Computers and Servers
• Embedded Systems
• Industrial Controls

Technical Specifications

With operating temperatures ranging from -40°C to +125°C, the MAX6377XR27 can withstand harsh environments while maintaining its performance. It also features an open-drain RESET output, which remains asserted for a minimum of 140ms after V<sub>CC has risen above the reset threshold. This ensures a proper system reboot.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the MAX6377XR27 is no exception. Customers can rely on this voltage monitor to protect their systems and maintain performance over time.

Whether you're designing consumer electronics, automotive systems, or industrial machinery, the MAX6377XR27 provides the crucial monitoring and protection your applications need to operate reliably and efficiently.
