REF02EJ

Part No REF02EJ
Manufacturer Analog Devices Inc.
Catalog PMIC - Voltage Reference

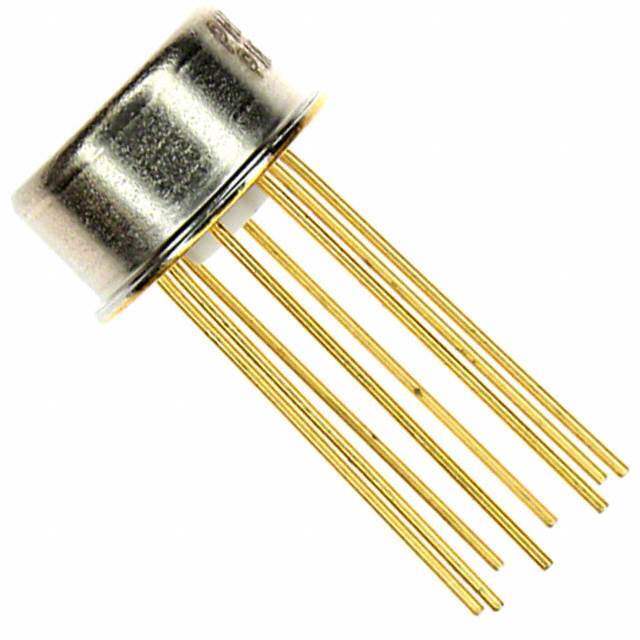

Description IC PREC VOLT REFERENCE 5V TO99-8
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Reference
Mfr Analog Devices Inc.
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Package / Case TO-99-8 Metal Can
Supplier Device Package TO-99-8
Base Product Number REF02
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 292688-REF02EJ
Ultra Librarian 3D Model Ultra Librarian REF02EJ CAD Model

Description

Analog Devices Inc. Product REF02EJ Overview

The REF02EJ from Analog Devices Inc. is a precision 5V voltage reference and regulator component designed for high-stability and low-power applications. This device is well-suited for converting a variable supply voltage to a stable 5V output with high accuracy. The REF02EJ is commonly used in data acquisition systems, analog-to-digital converters (ADCs), and digital-to-analog converters (DACs), as well as in precision measurement and control systems.

Key Features

  • Precision Voltage: The REF02EJ provides a precise 5V output with a tight tolerance, ensuring reliable performance in critical applications.
  • Low Temperature Coefficient: It boasts a low temperature coefficient, which minimizes output voltage variation over a wide temperature range, enhancing the stability of the overall system.
  • Low Dropout Voltage: The device operates with a low dropout voltage, making it efficient for use in systems with a limited power budget.
  • High Load-Driving Capability: With the ability to drive high loads, the REF02EJ is versatile and can be integrated into a variety of circuit configurations.
  • Long-Term Stability: The voltage reference exhibits excellent long-term stability, a crucial attribute for maintaining consistent performance over the product's lifespan.

Applications

The REF02EJ is ideal for a multitude of applications that require a stable voltage reference. These include precision data systems, industrial instrumentation, and any electronic system that demands a consistent and accurate reference voltage. Its high level of accuracy and stability makes it particularly valuable in environments with fluctuating temperatures or varying supply voltages.

Product Specifications

  • Output Voltage: 5V ±0.2%
  • Temperature Coefficient: Typically 25 ppm/°C
  • Load Regulation: Typically 0.003%/V
  • Supply Voltage: 7V to 40V
  • Operating Temperature Range: -55°C to +125°C
  • Package: Available in TO-99 and other package options

With its robust design and reliable performance, the REF02EJ from Analog Devices Inc. is an excellent choice for engineers and designers looking for a dependable voltage reference solution.
