Product Overview: REF195GRUZ-REEL7

The REF195GRUZ-REEL7 is a high-precision, low-power voltage reference IC from Analog Devices Inc., a renowned leader in the field of high-performance analog, mixed-signal, and digital signal processing integrated circuits. This component is part of Analog Devices' REF19x series of voltage references, which are known for their excellent stability and accuracy over time and temperature variations.

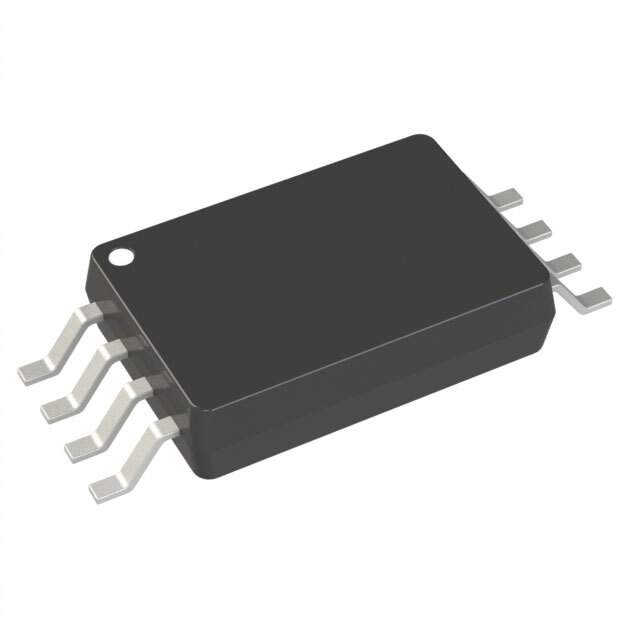

The REF195GRUZ-REEL7 comes in a compact TSSOP (Thin Shrink Small Outline Package) and is provided on a 7-inch reel, making it suitable for automated manufacturing processes. It offers a fixed output voltage of 5V, which is a standard reference voltage for many analog and digital circuits, making it a versatile choice for a wide range of applications.

Key Features:

• High Accuracy: The REF195GRUZ-REEL7 boasts an initial accuracy of ±0.15%, ensuring precise voltage regulation for sensitive applications.
• Low Temperature Coefficient: With a temperature coefficient of 10 ppm/°C max, this voltage reference maintains its accuracy across a wide temperature range.
• Low Dropout Voltage: The low dropout voltage allows the device to function correctly even when the supply voltage is very close to the output voltage, enhancing its versatility in different system configurations.
• Low Power Consumption: This device is designed for power-sensitive applications, consuming only 45 μA of supply current, which is ideal for battery-powered devices.
• Long-Term Stability: The REF195GRUZ-REEL7 offers excellent long-term stability, ensuring reliable performance over the product's lifespan.
• Wide Operating Temperature Range: It operates over an industrial temperature range of -40°C to +85°C, suitable for harsh environments.

Applications:

The REF195GRUZ-REEL7 is an excellent choice for high-accuracy and low-power applications such as:

• Data acquisition systems
• Precision instrumentation
• Portable medical devices
• Battery-powered equipment
• Automotive electronics
• Industrial control systems

In conclusion, the REF195GRUZ-REEL7 from Analog Devices Inc. is a reliable and precise voltage reference that offers a balance of performance, power consumption, and stability, making it a go-to choice for engineers and designers in various high-performance applications.
