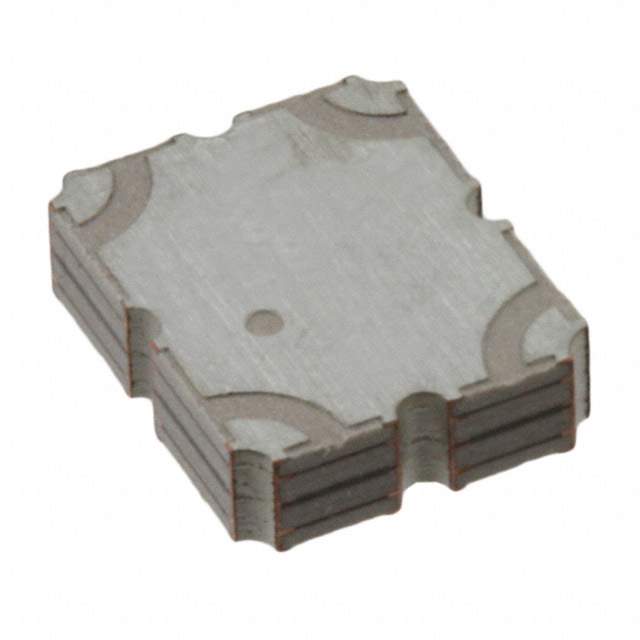

The X3C26P1-03SR is a surface-mount quadrature hybrid coupler manufactured by Anaren. This component is designed to evenly split an input signal into two output signals with a 90-degree phase difference between them. It operates within a specific frequency range and is commonly used in various radio frequency (RF) and microwave applications.

Applications

• Balanced Amplifiers: Used to combine the outputs of two amplifiers, improving power handling and reducing intermodulation distortion.
• Image Reject Mixers: Employed to suppress unwanted image frequencies in mixer circuits.
• Phase Shifters: Forms the basis for creating variable or fixed phase shifters.
• Combiners/Dividers: Can be used to combine or divide RF signals with specific phase relationships.
• Antenna Feed Networks: Distributes power to multiple antenna elements in phased array antennas.

Features

• Quadrature Hybrid: Provides two output signals with a 90-degree phase difference.
• Surface Mount Package: Designed for easy and efficient PCB mounting.
• Compact Size: Offers a small footprint for space-constrained applications.
• Wideband Performance: Operates over a specific frequency range, details of which can be found in the product datasheet.
• Low Insertion Loss: Minimizes signal attenuation through the coupler.
• High Isolation: Provides good isolation between the input and isolated ports.

Benefits

• Improved System Performance: Enhances the performance of RF and microwave circuits by providing accurate signal splitting and combining.
• Simplified Design: Enables easier implementation of complex RF functions.
• Reduced Component Count: Integrates the function of multiple discrete components into a single package.
• Enhanced Reliability: Provides a robust and reliable solution for RF signal processing.
• Compact Design: Allows for smaller and more densely populated circuit boards.

The X3C26P1-03SR's technical specifications include parameters such as frequency range, insertion loss, isolation, amplitude balance, phase balance, and power handling capability. These specifications are crucial for ensuring proper operation in the intended application. Designers should consult the official Anaren datasheet for detailed specifications and application notes to ensure optimal performance. The surface mount package allows for automated assembly, reducing manufacturing costs and improving consistency. This coupler is suitable for demanding applications requiring precise signal control and high reliability.
