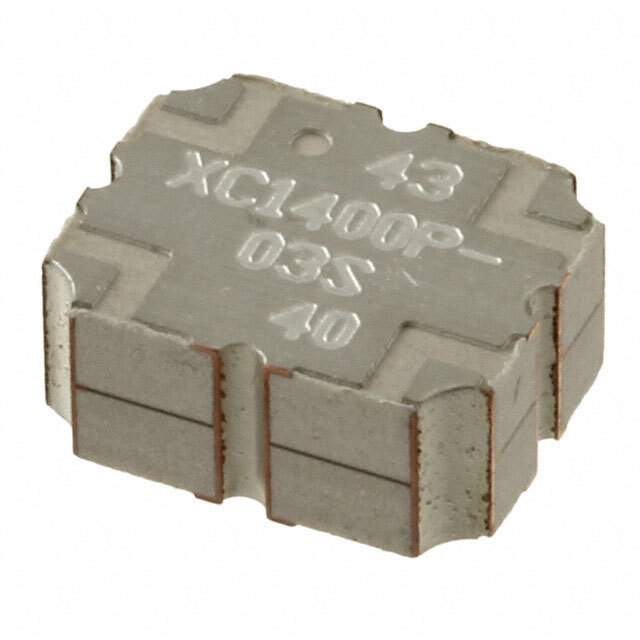

The XC1400P-03SR is a surface mount quadrature hybrid coupler manufactured by Anaren (now part of TTM Technologies). This component is designed to split an input signal into two equal-amplitude signals with a 90-degree phase difference, or to combine two signals with a 90-degree phase difference into a single output.

Applications:

• Balanced Amplifiers: Used to create balanced amplifiers, improving power handling and reducing distortion.
• Image Reject Mixers: Employed in image reject mixers to suppress unwanted image frequencies.
• Single Sideband (SSB) Modulators: Utilized in SSB modulators to generate a single sideband signal.
• Phase Shifters: Used as a building block in phase shifters for various applications.
• Antenna Arrays: Employed in antenna arrays to create specific radiation patterns.

Features:

• High Isolation: Provides excellent isolation between the input and isolated ports.
• Low Insertion Loss: Minimizes signal attenuation, ensuring efficient signal transfer.
• Excellent Amplitude Balance: Maintains equal amplitude between the two output signals.
• Accurate Phase Quadrature: Provides a precise 90-degree phase difference between the two output signals.
• Surface Mount Package: Facilitates automated assembly and reduces board space.
• Wideband Performance: Operates over a broad frequency range.

Benefits:

• Improved System Performance: High isolation and low insertion loss enhance overall system performance.
• Enhanced Signal Quality: Excellent amplitude balance and accurate phase quadrature ensure high-quality signal processing.
• Simplified Assembly: Surface mount package simplifies assembly and reduces manufacturing costs.
• Compact Design: Small footprint allows for compact designs, saving board space.
• Versatile Solution: Suitable for a wide range of applications, providing a flexible solution for signal processing needs.

The XC1400P-03SR from Anaren is a high-performance surface mount quadrature hybrid coupler. Its high isolation, low insertion loss, excellent amplitude balance, and accurate phase quadrature make it an excellent choice for balanced amplifiers, image reject mixers, SSB modulators, phase shifters, and antenna arrays. This component offers a robust and versatile solution for demanding signal processing applications.
