Same model may have multiple batches, images only for reference.

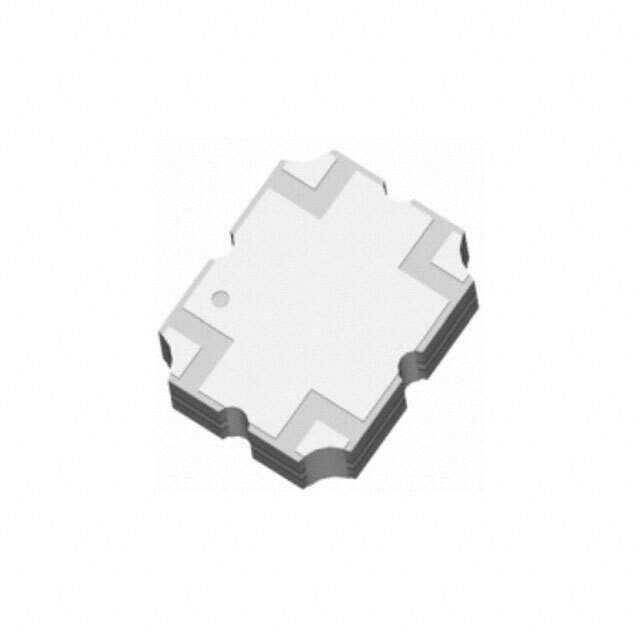

XC1500A-20S Real Image
Same model may have multiple batches, images only for reference.

XC1500A-20S

Part No XC1500A-20S
Manufacturer Anaren
Catalog RF Directional Coupler
Description 20dB Directional Coupler | RF DIR COUPLER 1GHZ-2GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Anaren
Packaging Tape and Reel
Coupler Type Standard
Frequency 1GHz ~ 2GHz
Coupling Factor 20dB
Applications General Purpose
Insertion Loss 0.19dB
Maximum Power 160W
Manufacturer Package 4-SMD, No Lead
Supplier Device Package SMD
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Win Source Part Number 1281450-XC1500A-20S
Manufacturer Homepage www.anaren.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC1500A-20S CAD Model

Description

The Anaren 1281450-XC1500A-20S is an electronic component manufactured by Anaren. The product is a 4-SMD, no lead package with a frequency range of 1GHz ~ 2GHz and a maximum power of 160W.

  • Package: 4-SMD, no lead
  • Frequency Range: 1GHz ~ 2GHz
  • Maximum Power: 160W
  • Coupler Type: Standard
  • Coupling Factor: 20dB
  • Insertion Loss: 0.19dB
  • Supply and Demand Status: Shortage
