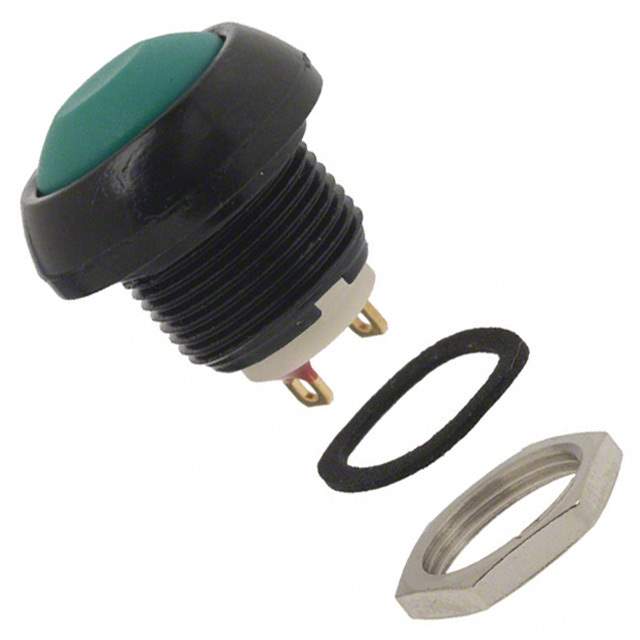

ISR3SAD300 Real Image
Same model may have multiple batches, images only for reference.

ISR3SAD300

Part No ISR3SAD300
Manufacturer Apem Inc.
Catalog Pushbutton Switches
Description SWITCH PUSH SPST-NO 0.4A 32V  /  Pushbutton Switch SPST-NO Standard Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr APEM Inc.
Series IS
Package Bulk
Mounting Type Panel Mount, Front
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 400mA (AC), 100mA (DC)
Voltage Rating - AC 32 V
Voltage Rating - DC 50 V
Actuator Type Round, Button
Actuator Marking No Marking
Color - Actuator/Cap Green
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Circular - 13.60mm Dia
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 500,000 Cycles
Base Product Number ISR3SA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-1095
Standard Package 50
Win Source Part Number 973187-ISR3SAD300
Ultra Librarian 3D Model Ultra Librarian ISR3SAD300 CAD Model

Description

The IS series pushbutton switch from APEM Inc. is a standard type switch with epoxy-sealed terminals.

  • Switch Type: Pushbutton
  • Terminal Type: Epoxy-Sealed
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round Button
  • Actuator Color: Green
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 500,000 cycles
  • Current Rating (AC): 400mA @ 32V
  • Current Rating (DC): 100mA @ 50V
  • Panel Cutout Dimension: 13.60mm Diameter
  • Mounting Type: Panel Mount, Front
  • Ingress Protection: IP67
  • Temperature Range: -40°C to 85°C
