Same model may have multiple batches, images only for reference.

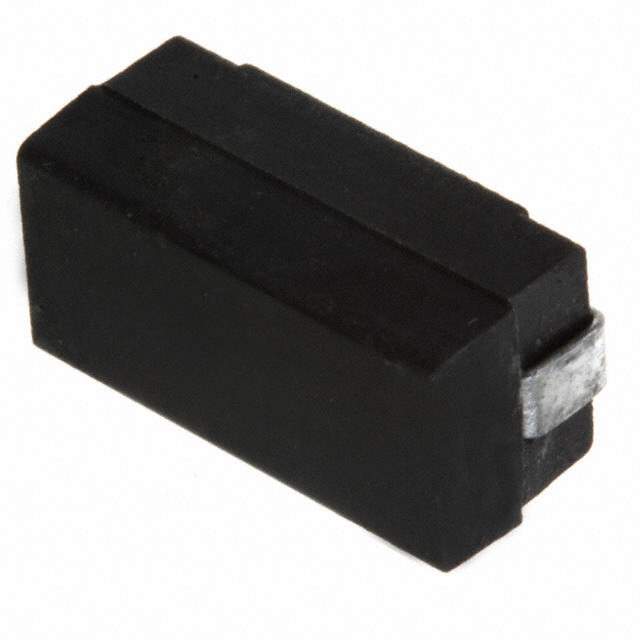

5022R-221F Real Image
Same model may have multiple batches, images only for reference.

5022R-221F

Part No 5022R-221F
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 220NH 2.58A 55MOHM SMD / 220 nH Unshielded Inductor 2.58 A 55mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series 5022R
Package Tape & Reel (TR)
Material - Core Phenolic
Inductance 220 nH
Tolerance ±1%
Current Rating (Amps) 2.58 A
Shielding Unshielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 50 @ 25MHz
Frequency - Self Resonant 450MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.520" L x 0.250" W (13.21mm x 6.35mm)
Height - Seated (Max) 0.230" (5.84mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 5022R-221F 800 TR
Standard Package 800
Win Source Part Number 1146424-5022R-221F
Ultra Librarian 3D Model Ultra Librarian 5022R-221F CAD Model

Description

The API Delevan Inc. 1146424-5022R-221F is a fixed inductor that is ideal for use in various electronic applications.

  • Series: 5022R
  • Package Size: Nonstandard
  • Operating Temperature: -55°C to 125°C
  • Inductance: 220 nH
  • Maximum Current: 2.58 A
  • Maximum Resistance: 55mOhm
  • Packaging: Tape & reel (TR)
  • Mounting Type: SMD (SMT)
