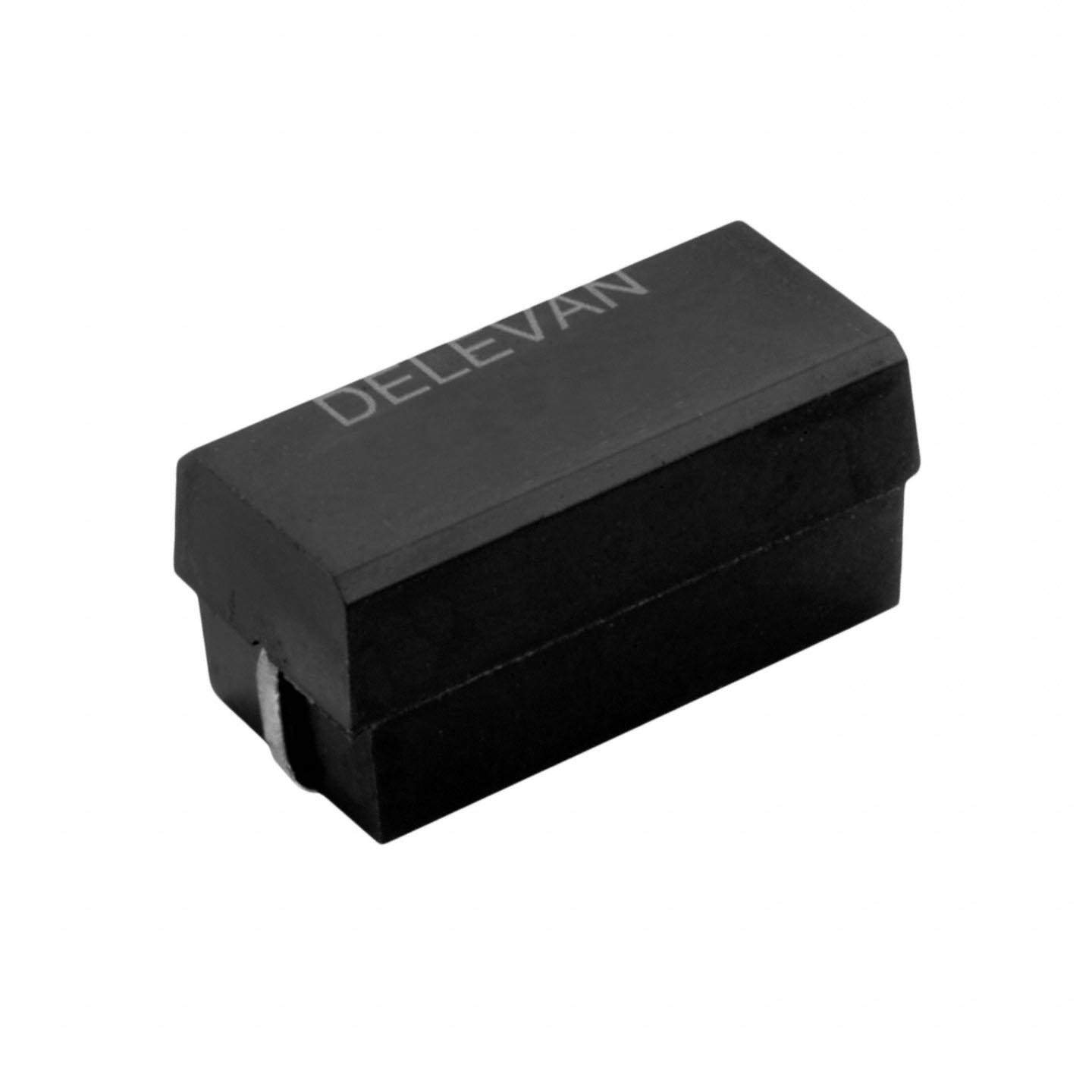

Same model may have multiple batches, images only for reference.

5500R-394K

Name: 5500R-394K
Brand: API Delevan Inc.
SKU: 420449
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	5500R-394K
Manufacturer	API Delevan Inc.
Catalog	Fixed Inductors
Description	FIXED IND 390UH 1.86A 288 MOHM
Datasheet	5500R-394K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	API Delevan Inc.
Packaging	Reel - TR
Status	Active
Material - Core	Ferrite
Inductance	390μH
Tolerance	±10%
Current Rating	1.86A
Current - Saturation	880mA
DC Resistance (DCR)	288 mOhm Max
Temperature Range - Operating	-55°C to 130°C
Frequency - Test	1kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.520" (13.21mm)
Win Source Part Number	1006100-5500R-394K
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 5500R-394K CAD Model

Alternative Products

Description

The 1006100-5500R-394K is a ferrite core inductor that has a current rating of 1.86A and an inductance of 390μH. It has a maximum seated height of 0.520 inches and a tolerance of ±10%.

Core Material: ferrite
Current Rating: 1.86A
Inductance: 390μH
Seated Height (Max): 0.520 inches
Tolerance: ±10%
Popularity: medium
Supply and Demand: balanced
Manufacturer: API Delevan Inc.
