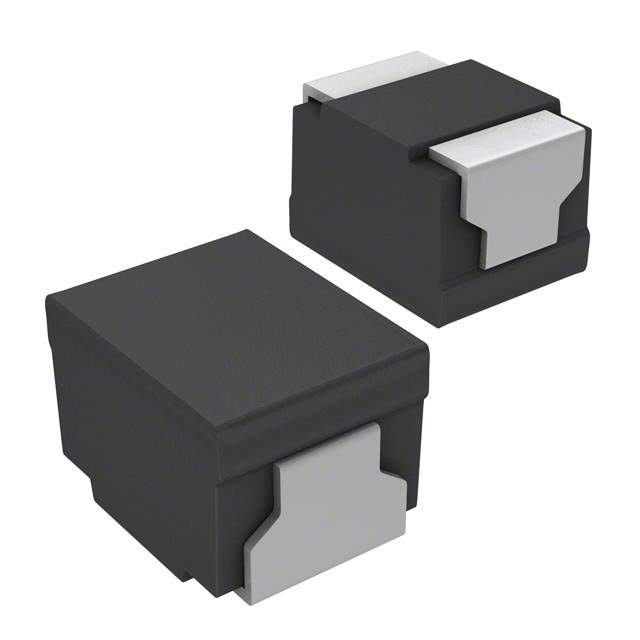

Same model may have multiple batches, images only for reference.

ELJ-DA101JF

Name: ELJ-DA101JF
Brand: Panasonic
SKU: 1327401
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ELJ-DA101JF
Manufacturer	Panasonic
Catalog	Fixed Inductors
Description	FIXED IND 100UH 70MA 13 OHM SMD / 100 µH Unshielded Wirewound Inductor 70 mA 13Ohm Max 1210 (3225 Metric)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Product Status	Obsolete
Type	Wirewound
Inductance	100 µH
Tolerance	±5%
Current Rating (Amps)	70 mA
Shielding	Unshielded
DC Resistance (DCR)	13Ohm Max
Q @ Freq	24 @ 796kHz
Frequency - Self Resonant	7MHz
Temperature Range - Operating	-20°C ~ 85°C
Inductance Frequency - Test	796 kHz
Mounting	Surface Mount
Case / Package	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
Base Product Number	ELJ-DA
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	ELJDA101JF,PCD2334TR,PCD2334CT,PCD2334DKR
Standard Package	2,000
Win Source Part Number	1327401-ELJ-DA101JF
Ultra Librarian 3D Model	Ultra Librarian ELJ-DA101JF CAD Model

Alternative Products

Description

The Panasonic Electronic Components ELJ-DA101JF is a wirewound type fixed inductor with an inductance of 100μH and a tolerance of ±5%.

DC Resistance: 13 Ohms max
Q factor: 24 @ 796 kHz
Self-Resonant Frequency: 7 MHz
Current Rating: 70mA
Shielding: Unshielded
Case/Package: 1210 (3225 metric) surface mount
Height: 0.094” (2.40mm)
Temperature Range: -20°C to 85°C
Status: Obsolete
Standard Package: 2,000
