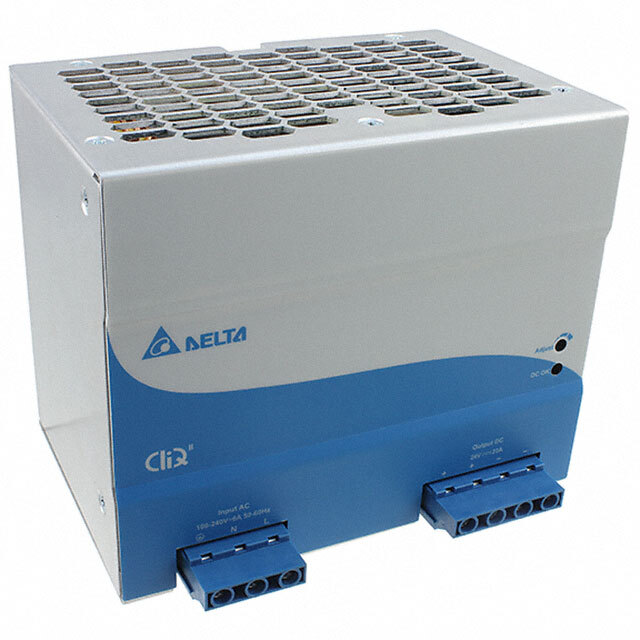

ADN20-24-1PM-C

Part No ADN20-24-1PM-C
Catalog Industrial, DIN Rail Power Supplies
Description AC/DC DIN RAIL SUPPLY 24V 480W
Sample
Rohs State rohs
Need Help

Products specifications Report Issue?

Input Type AC or DC
Number of Outputs 1
AC Voltage - Input 85 ~ 264 VAC
DC Voltage - Input (Min) 90V
DC Voltage - Input (Max) 375V
Voltage - Output 1 24V
Current - Output (Max) 20A
Power (Watts) 480W
Applications Hazardous Locations, Industrial, ITE (Commercial)
Efficiency 90%
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Features Adjustable Output, IP20, Load Sharing, PFC, Universal Input
Size / Dimension 4.96" L x 3.42" W x 4.85" H (126.0mm x 87.0mm x 123.0mm)
Approval Agency CE, cULus, UL
Standard Number Class I Div 2; 508; 60950-1
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1542288-ADN20-24-1PM-C
Ultra Librarian 3D Model Ultra Librarian ADN20-24-1PM-C CAD Model
